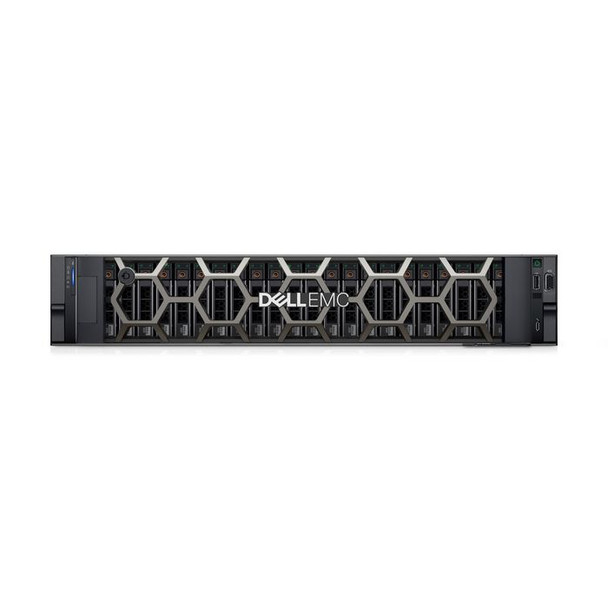

Dell TVMNT634-BYLI POWEREDGE R750XS INTEL XEON TVMNT634-BYLI

Purpose-built 2U for growing scale-out solutions
The Dell EMC PowerEdge R750xs is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.

Carbon footprint



Carbon emissions (End-of-Life)



26 kg of CO2e


Carbon emissions (Logistics)



162 kg of CO2e


Carbon emissions (Manufacturing)



1037 kg of CO2e


Carbon emissions (Use)



7700 kg of CO2e


PAIA version



1.3.2, 2022


Total carbon emissions (Standard deviation)



4770 kg of CO2e


Total carbon emissions (w/o Use phase)



1225 kg of CO2e


Total carbon footprint



8930 kg of CO2e


Design



Bezel



Yes


Chassis type



Rack (2U)


Product colour



Black


Rack rails



Yes


Expansion slots



PCI Express x16 slots



1


PCI Express x4 slots



1


Graphics



On-board graphics card model



Not available


Logistics data



Harmonized System (HS) code



84714100


Memory



Buffered memory type



Registered (buffered)


Internal memory



32 GB


Internal memory type



DDR4-SDRAM


Maximum internal memory



1 TB


Memory clock speed



2666 MHz


Memory data transfer rate



3200 MT/s


Memory layout (slots x size)



1 x 32 GB


Memory ranking



2


Memory slots



16x DIMM


Network



Ethernet interface type



10 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Broadcom 57412


Operational conditions



Non-operating altitude



0 - 12000 m


Operating altitude



0 - 3048 m


Operating temperature (T-T)



10 - 35 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Other features



Bytes per sector



512


Data transfer rate



6 Gbit/s


Drive bays



8


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Performance



Remote administration



iDRAC9, Enterprise 15G


Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power cables quantity



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


Power



Number of main power supplies



1


Number of redundant power supplies supported



2


Power cable connector 1



C13 coupler


Power cable connector 2



C14 coupler


Power cable current



10 A


Power cable length



2 m


Power supply



800 Watt


Redundant power supply (RPS) support



Yes


Processor



Maximum internal memory supported by processor



512 GB


Number of processors installed



1


Processor boost frequency



3.3 GHz


Processor cache



18 MB


Processor family



Intel Xeon Silver


Processor frequency



2.1 GHz


Processor generation



3rd Generation Intel� Xeon� Scalable


Processor manufacturer



Intel


Processor model



4310


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Height



8.68 cm


Software



Compatible operating systems



Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi


Operating system installed



Windows Server 2022 Essentials


Storage



Drive writes per day (DWPD)



1


Hot-Plug support



Yes


Number of SSDs installed



1


Number of SSDs supported



8


Optical drive type



No


SSD capacity



480 GB


SSD interface



SATA III


SSD size



2.5"


Storage drive adapter included



Yes


Storage drive adapter type



2.5" - 3.5"


Supported RAID controllers



PERC H755


Supported SSD sizes



3.5"


Total storage capacity



480 GB


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
