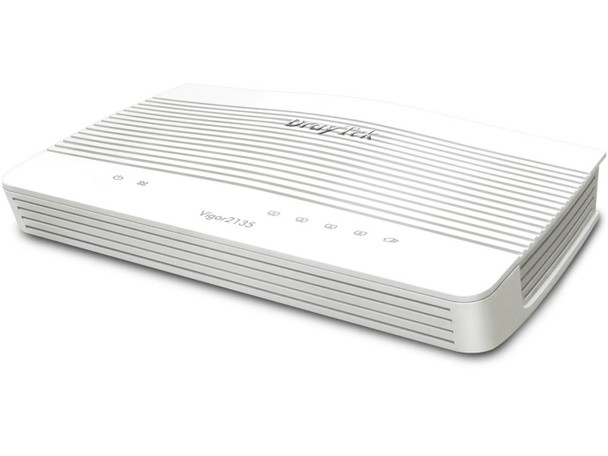

Draytek V2135-DE-AT-CH Vigor2135 Wired Router V2135-DE-AT-CH

Hardware NAT Router for Professionals
Vigor2135 Series is a broadband firewall and a VPN router. With hardware accelerator, it delivers up to 940 Mbps performance without sacrificing bandwidth control features. It�s also equipped with business-grade features, including web content filtering, Route Policy, App-based QoS and lots more, and is perfect for professional smart homes/SOHO users who would like to take full control of their own network. The series includes models with built-in 11ac Wave 2 wireless standard and fiber WAN.

Hardware NAT & Routing with Hardware QoS
The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2135�s firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. You may easily prioritized business critical apps, and always keep VoIP in 1st priority.

Making Transmission Effective
Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.

Resource Saving
Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.

No Controller Required
Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.

Stronger Signal Guaranteed
By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

WLAN Marketing
Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

Grow Your Email List
Require the guest to leave contact info or social media accounts before they can use the Internet service.

Various Authentication Type
A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

Automatic Device Discovery
All you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed.

Provisioning
Basic settings may be done on the Vigor Router, and provision to the managed VigorAP.

Monitoring
Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.

System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There�s no need to log in to each device�s management page.

Design



LED indicators



Y, Yes


Product colour



Grey


Management features



Firmware upgradeable



Yes


Quality of Service (QoS) support



Yes


Reset button



Yes


Universal Plug and Play (UPnP)



Yes


Web-based management



Yes


Mobile network



Mobile network generation



Not supported


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



1000


Static route



Yes


Throughput



0.6 Gbit/s


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.13 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


Power



Output current



1.5 A


Output voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.87 kg


Product Depth



13.1 cm


Product Height



4.2 cm


Product Width



20.7 cm


Security



ARP attack prevention



Yes


Firewall



Yes


Security algorithms



WEP, WPA, WPA2, WPA3


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)


WAN connection



3G/4G USB modem compatibility



Yes


Ethernet WAN



Yes
