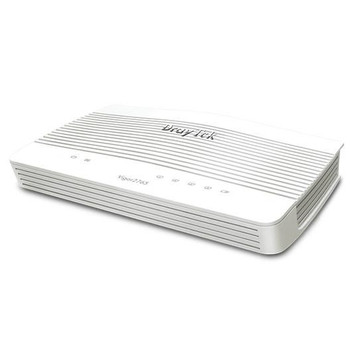

Draytek V2765B-DE-AT-CH Vigor2765 Wired Router V2765B-DE-AT-CH

VDSL2 35b Supervectoring Router for Professionals
Vigor2765 Series is a VDSL2 35b supervectoring modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 Wi-Fi and VoIP gateway.

35b Supervectoring Modem
Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2765 Series to the remote offices and teleworkers over the Internet. Learn more

VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more
speed control

Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

VoIP Friendly
Vigor2765 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide
dynamic DNS service

DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.

Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
captive portal

Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN.
wireless management

Central AP Management
Use the Vigor2765 Series router as a wireless controller to maintain and monitor the VigorAPs.

Design



Product colour



White


DSL features



ADSL2+



Yes


VDSL



Yes


VDSL2



Yes


Management features



Quality of Service (QoS) support



Yes


Reset button



Yes


Universal Plug and Play (UPnP)



Yes


WPS push button



Yes


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Multicast support



Yes


Networking standards



IEEE 802.1Q


Policy-based routing



Yes


Static route



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


RJ-11 ports quantity



1


USB ports quantity



2


USB version



2.0


Power



AC input voltage



220 - 240 V


Output voltage



12 V


Power consumption (typical)



14.4 Watt


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



13.1 cm


Product Height



4.2 cm


Product Width



20.7 cm


Protocols



DHCP server



Yes


DMZ support



Yes


Security



Access Control List (ACL)



Yes


DoS attack prevention



Yes


Firewall



Yes


IP address filtering



Yes


Network address translation (NAT)



Yes


Security algorithms



128-bit AES, 192-bit AES, 256-bit AES


System event log



Yes


URL filtering



Yes


VPN tunnels quantity



2


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)


WAN connection



DSL WAN



Yes


Ethernet WAN



Yes


SIM card slot



No
