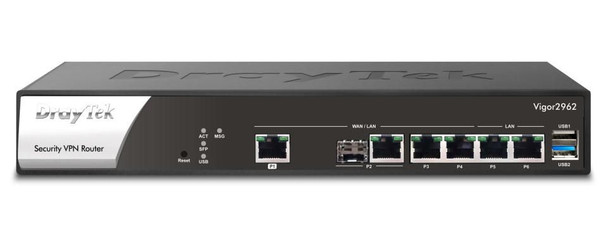

Draytek V2962-DE-AT-CH Vigor 2962 Wired Router 2.5 V2962-DE-AT-CH

The DrayTek Vigor 2962 Dual-WAN Load Balancing Firewall VPN router surpasses Gigabit speeds, to get the best performance out of FTTP Fibre Broadband and more. Connects to 2.5Gb Ethernet and SFP Fibre, for LAN or WAN use.

The Vigor 2962 provides a reliable, flexible, and secure network solution with extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.

An ideal VPN concentrator with 500Mbps SSL VPN performance. Connect up to 50 SSL VPN & OpenVPN users, or 200 IPsec tunnels, simultaneously. With up to 20 LAN subnets, BGP and OSPF, it’s well equipped to manage larger, more complex networks and Multi Occupancy Offices.

Design



LED indicators



Activity, USB


Product colour



Black, White


Rack mounting



Yes


Management features



Firmware upgradeable



Yes


Quality of Service (QoS) support



Yes


Reset button



Yes


Web-based management



Yes


Mobile network



Mobile network generation



Not supported


Network



Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000, 2500


Forwarding rate



900 Mpps


Multicast support



Yes


Networking standards



IEEE 802.1Q


Policy-based routing



Yes


Port forwarding



Yes


Throughput



2.2 Gbit/s


Traffic control



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 °C


Storage temperature (T-T)



-25 - 70 °C


Package dimensions



Gross Weight (Package, kg)



3.07 kg


Packaging data



AC adapter included



Yes


Cables included



LAN (RJ-45)


Quick start guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


USB ports quantity



2


USB version



2.0/3.2 Gen 1 (3.1 Gen 1)


Power



AC input voltage



220 - 240 V


Power consumption (typical)



15 Watt


Product dimensions



Net Weight (Product, kg)



2.36 kg


Product Depth



17 cm


Product Height



4.5 cm


Product Width



27.3 cm


Protocols



DHCP client



Yes


DHCP server



Yes


DMZ support



Yes


IPv4 & IPv6 features



Dual stack IPv4/IPv6


Routing protocols



RIP-1, RIP-2, RIPng


Security



DoS attack prevention



Yes


Firewall



Yes


MAC address filtering



Yes


Network address translation (NAT)



Yes


Security algorithms



HTTPS, SSH


URL filtering



Yes


VPN tunnels quantity



200


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)


WAN connection



Ethernet WAN



Yes
