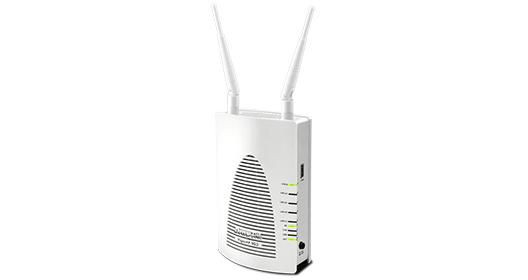

Draytek VAP903-DE-AT-CH Vigorap 903 1300 Mbit/S White VAP903-DE-AT-CH

VigorAP 903 is 11ac Wave 2 dual-band wireless mesh access point with a 5-port LAN switch, which port 1 supports 802.3at PoE-In.

VigorAP 903 provides the flexibility and advanced features for professional users to take full management of the wireless network, including the mesh technology, which aims for providing an easy way to expand the wireless network in minutes.

Antenna



Antenna connector type



SMA


Antenna features



Detachable antenna


Antenna gain level (max)



4 dBi


Antennas quantity



2


Design



Certification



CE, FCC


On/off switch



Yes


Placement



Table, Wall


Product colour



White


Reset button



Yes


WPS push button



Yes


Features



2.4 GHz



Yes


5 GHz



Yes


Airtime Fairness (ATF)



Yes


Band steering



Yes


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1300 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at


Number of users



128 user(s)


User-based bandwidth limiting



Yes


VLAN support



Yes


Wi-Fi Multimedia (WMM)/(WME)



Yes


Wi-Fi roaming



Yes


Management features



Syslog



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



5


USB 2.0 ports quantity



1


USB connector type



USB Type-A


Power



Power consumption (max)



18 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.77 kg


Protocols



DHCP client



Yes


DHCP server



Yes


Security



Access Control List (ACL)



Yes


Number of SSID supported



8


Security algorithms



EAP-TLS, PEAP, SNMPv3


Service Set Identifier (SSID) features



SSID broadcast on/off


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)
