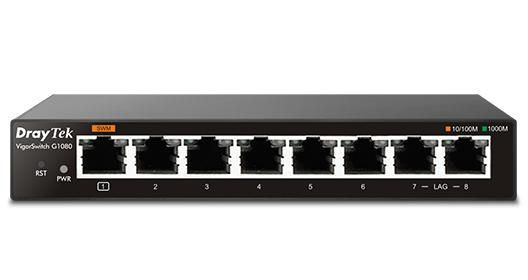

Draytek VSWITCHG1080-DE-AT-CH Vigorswitch G1080 Managed L2 VSWITCHG1080-DE-AT-CH

Small Size, Great Performance
DrayTek VigorSwitch G1080 is an extremely compact 8-port smart lite Gigabit switch. It provides basic management including 802.1q VLAN, 802.1p CoS QoS, Link Aggregation, Storm Control, and Loop Prevention. Perfect for Smart home/SOHO with needs of network efficiency and security.

802.1q VLAN
Partition the local network by 802.1q tag to increase data efficiency and security.

Link Aggregation
Combing Port 7 and 8 to increase network throughput.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Data transmission



Forwarding rate



11.9 Mpps


Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



4096 entries


Number of queues



4


Static route



Yes


Store-and-forward



Yes


Switching capacity



16 Gbit/s


Design



Certification



FCC, CE, RoHS


LED indicators



Y, Yes


Product colour



Black


Reset button



Yes


Management features



ARP inspection



Yes


Cloud-managed



Yes


Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


System event log



Yes


Traffic shaping



Yes


User operation log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Ethernet LAN data rates



10, 100, 480, 800, 1000


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Policy-based routing



Yes


Port mirroring



Yes


Rate limiting



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-20 - 70 °C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Manual



Yes


Quick start guide



Yes


User guide



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



8


Power



DC input voltage



5 V


Input current



1 A


Power consumption (typical)



3.3 Watt


Power source



DC


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



8.5 cm


Product Height



2.6 cm


Product Width



15.4 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP client, DHCP server, DHCPv6 client, DHCPv6 server


IGMP snooping



Yes


IP-MAC-Port binding



Yes


Password protection



Yes


SSH/SSL support



Yes


Static port security



No


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)
