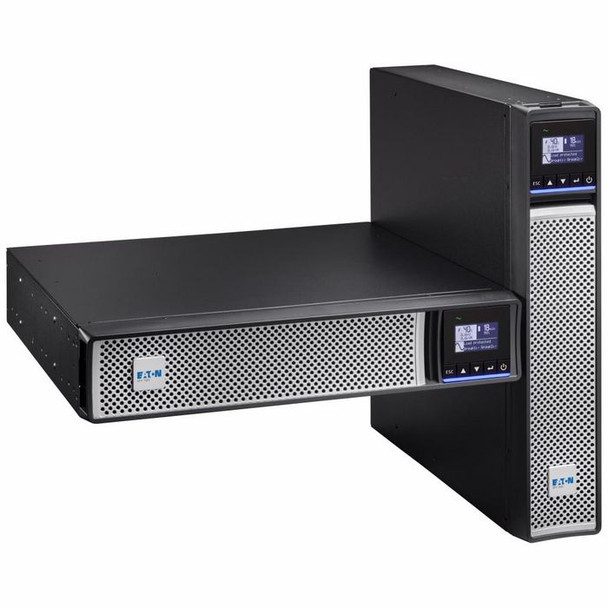

Eaton 5PX3000IRTNG2 5PX G2 - Netpack - USV - 3000 5PX3000IRTNG2

Exceptional efficiency, manageability and energy metering capabilities for IT managers

Performance and efficiency

- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

Management and Cybersecurity

- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton�s Intelligent Power Software.
- Eaton�s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM� battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.

Battery



Automatic battery test



Yes


Hot-swap battery



Yes


Design



Certification



IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm


Display type



LCD


Form factor



Rackmount/Tower


LED indicators



Y, Yes


Product colour



Black


Rack capacity



2U


Safety



IEC/EN 62040-1, UL1778, CSA22.2


Features



Input frequency



47/70 Hz


Input operation voltage (max)



294 V


Input operation voltage (min)



160 V


Noise level



40 dB


Output power



3000 Watt


Output power capacity



3000 kVA


Power protection features



Overdischarge


UPS topology



Line-Interactive


Waveform



Pure sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Other features



Nominal output voltage



230 V


Output connections



8 x IEC C13 (10A) 2 x IEC C19 (16A)


Package dimensions



Gross Weight (Package, kg)



34 kg


Packaging data



Management card included



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



10 AC outlet(s)


Cabling technology



10/100/1000Base-T(X)


Power plug



C20 coupler


Serial interface



Yes


Serial interface type



RS-232


Serial ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



31.7 kg


Product Depth



48.3 cm


Product Height



8.55 cm


Product Width



43.8 cm


Technical details



Sustainability certificates



CE, ENERGY STAR


Sustainability compliance



Yes


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
