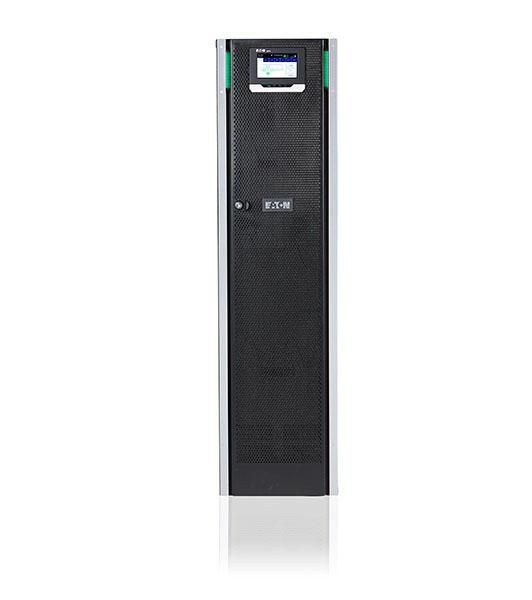

Eaton 93PS10MBSI 93Ps Double-Conversion 93PS10MBSI

The Eaton 93PS provides the lowest Total Cost of Ownership and maximum availability in its power range. Providing top of the line efficiency and resiliency, it’s the perfect choice for small data centers and mission critical applications.

Lowest Total Cost of Ownership (TCO)
Efficiency
- Above 96% efficiency in double conversion mode
- Up to 98,8% efficiency with Energy Saver System

Inherent redundancy
- Inherent redundancy – possibility for internal redundancy with common or separate battery configuration

Smallest footprint in the market
- The 93PS provides significantly more in a smaller package, with a footprint of only 0,25 m² for the smaller frame (8-20kW) and 0,36 m² for the large frame (8-40kW)

Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimize Capital Expenditure
- Paralleling of up to 8 units

Maximum Availability
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load

Super-sized static switch
- Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation

Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional instalments

Cloud & Virtualization ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!

Battery



Battery capacity



9 Ah


Battery life (max)



5 year(s)


Battery technology



Sealed Lead Acid (VRLA)


Battery voltage



12 V


Hot-swap battery



Yes


Number of battery cells



192


Design



Certification



WEEE


Display type



LCD


Form factor



Tower


International Protection (IP) code



IP20


LED indicators



Y, Yes


Product colour



Black


Safety



IEC 62040-1, IEC 62040-2, IEC 62040-3


Features



Efficiency (On-line mode)



96 %


Emergency Power Off (EPO)



Yes


Input frequency



50/60 Hz


Input operation voltage (max)



415 V


Input operation voltage (min)



220 V


Input power factor



0.99


Maximum current



13 A


Noise level



54 dB


Number of input phases



3


Number of output phases



3


Output frequency



50/60 Hz


Output operation voltage (max)



415 V


Output operation voltage (min)



220 V


Output power



10000 Watt


Output power capacity



10 kVA


Output power factor



1


Overload capacity (1 minute)



125 %


Overload capacity (10 minutes)



110 %


Overload capacity (10 seconds)



150 %


Power protection features



Overload


Total Harmonic Distortion (THD) (linear load)



1.5 %


Total Harmonic Distortion (THD) (non-linear load)



3.5 %


UPS topology



Double-conversion (Online)


Operational conditions



Operating altitude



0 - 2000 m


Package dimensions



Gross Weight (Package, kg)



5.2 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


RS-232 ports



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



4 kg


Product Depth



75 cm


Product Height



95 cm


Product Width



33.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
