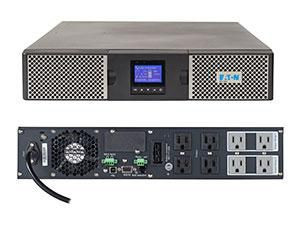

Eaton 9PX1500IRT2U-L 9Px Double-Conversion 9PX1500IRT2U-L

Battery



Battery technology



Lithium-Ion (Li-Ion)


Hot-swap battery



Yes


Design



Certification



IEC/EN 62040-2, FCC, CISPR22, CE, CB, TUV, cULus, EAC, RCM, KC


Display type



LCD


Form factor



Rackmount/Tower


Product colour



Black, Silver


Rack capacity



2U


Safety



IEC/EN 62040-1, UL 1778, CSA 22.2


Features



Auto power off



Yes


Efficiency



92.5 %


Input frequency



40/70 Hz


Input operation voltage (max)



276 V


Input operation voltage (min)



176 V


Input power factor



0.99


Noise level



35 dB


Number of input phases



1


Number of output phases



1


Output frequency



50/60 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



200 V


Output power



1500 Watt


Output power capacity



1.5 kVA


Output power factor



1


Output voltage Total Harmonic Distortion (THD)



3 %


UPS topology



Double-conversion (Online)


Waveform



Sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 96 %


Operating temperature (T-T)



0 - 40 �C


Other features



Bypass



Internal


Package dimensions



Gross Weight (Package, kg)



20.54 kg


Packaging data



Cables included



Output power cable, Serial


Quick installation guide



Yes


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



8 AC outlet(s)


Power plug



C14 coupler


Serial interface



Yes


Serial interface type



RS-232


Serial ports quantity



1


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



15.8 kg


Product Depth



45 cm


Product Height



8.65 cm


Product Width



44 cm


Technical details



Sustainability certificates



ENERGY STAR


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
