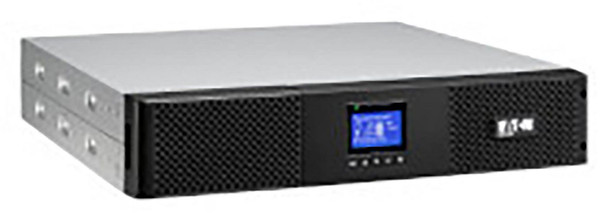

Eaton 9SX1000IR 9Sx Double-Conversion 9SX1000IR

Design



Certification



IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC


Display type



LCD


Form factor



Rackmount


Product colour



Black


Rack capacity



2U


Safety



IEC/EN 62040-1, UL 1778, CSA 22.2


Features



Input frequency



40 - 70 Hz


Input operation voltage (max)



276 V


Input operation voltage (min)



190 V


Maximum current



10 A


Noise level



41 dB


Output frequency



50/60 Hz


Output power



900 Watt


Output power capacity



1 kVA


UPS topology



Double-conversion (Online)


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



20.41 kg


Ports & interfaces



AC outlet types



C13 coupler, C14 coupler


AC outlets quantity



7 AC outlet(s)


Power plug



C14 coupler


Serial interface



Yes


Serial interface type



RS-232


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



15.7 kg


Product Depth



43.8 cm


Product Height



8.65 cm


Product Width



43.8 cm


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
