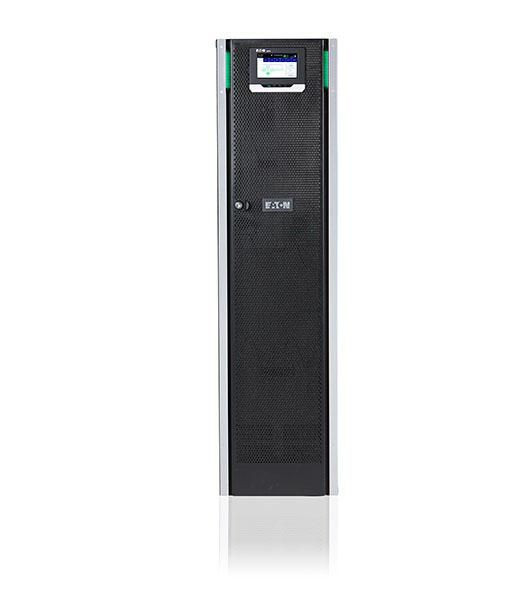

Eaton BA80A0206A01000000 93Ps Double-Conversion BA80A0206A01000000

Efficiency

- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System

Scalability

- Scalable architecture and �Pay as you grow� capability to minimise Capital Expenditure
- Paralleling of up to 4 units

Inherent redundancy

- Modular design allows internal redundancy (separate battery configuration also available)

Smallest footprint in the market

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m� for the smaller frame (8-20 kW) and 0.36 m� for the large frame (8-40 kW)

Unity power factor (1.0)

Hot Swap and Hot Scalable

- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load

Super-sized static switch

Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation

Safety

- Equipped with an ultra-rapid fuse in the Static Switch � ensuring safety in all scenarios
- Equipped with a backfeed contactor � no need for additional installments

Cloud & Virtualisation ready

- The 93PS and Eaton�s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a �Single pane of glass�
- Load shedding � 50% drop in load equates to 250% more runtime!

Battery



Automatic battery test



Yes


Hot-swap battery



Yes


Number of batteries supported



64


Design



Certification



IEC 62040-1, IEC 62040-2, IEC 62040-3


Display type



LCD


Form factor



Tower


International Protection (IP) code



IP20


LED indicators



Y, Yes


Product colour



Black


Safety



IEC 62040-1


Features



Efficiency



96 %


Input current Total Harmonic Distortion (THD)



5 %


Input frequency



50/60 Hz


Input operation voltage (max)



415 V


Input operation voltage (min)



380 V


Input power factor



0.99


Noise level



60 dB


Number of input phases



3


Number of output phases



3


Output frequency



50/60 Hz


Output operation voltage (max)



415 V


Output operation voltage (min)



380 V


Output power



8000 Watt


Output power capacity



8 kVA


Output power factor



1


Power factor



1


Power protection features



Overload


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Operational conditions



Operating temperature (T-T)



5 - 45 �C


Other features



Nominal input voltage



400 V


Nominal output voltage



400 V


Package dimensions



Gross Weight (Package, kg)



5.2 kg


Packaging data



Bundled software



Intelligent Power Software suite


Management card included



Yes


Ports & interfaces



RS-232 ports



1


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



4 kg


Product Depth



75 cm


Product Height



130 cm


Product Width



33.5 cm


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
