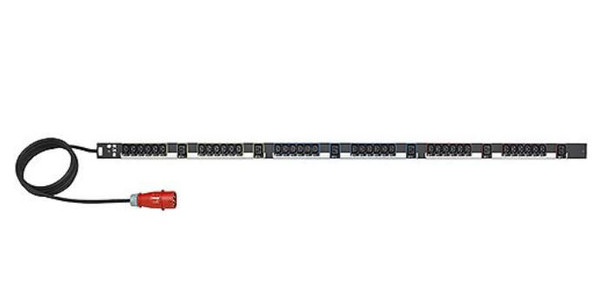

Eaton EBAB00 Power Distribution Unit Pdu EBAB00

Designed for reliable and cost effective power distribution, the new ePDU G3 Basic models feature Eaton�s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature.

Design



Cable colour



Black


Form factor



Rackmount


Mounting



Vertical


PDU types



Basic


Product colour



Black


Rack capacity



0U


Rack mounting



Yes


Type



Three-phase


Features



Cable length



3 m


LED indicators



Yes


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Packaging content



Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



42 AC outlet(s)


Output connections



36 x C13 & 6 x C19


Power plug



IEC 60309


Power



AC input frequency



50 Hz


Maximum current



16 A


Maximum input current per phase



16 A


Maximum power



11000 Watt


Nominal input voltage



400 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



160.4 cm


Product Height



5.3 cm


Product Width



5.2 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



52 x 1604 x 53 mm
