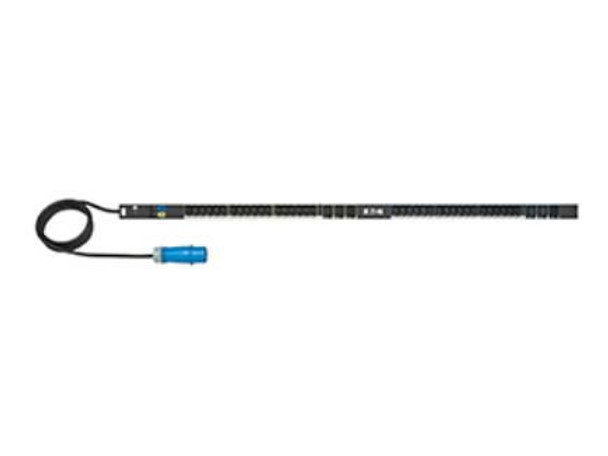

Eaton EBAB08 Power Distribution Unit Pdu EBAB08

Designed for reliable and cost effective power distribution, the ePDU G3 Basic models feature Eaton�s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature. 0U models include both rear and side button mounting system and Eaton�s patented variable mounting system.

Design



Cable colour



Black


Form factor



Rackmount


Mounting



Vertical


PDU types



Basic


Product colour



Black


Rack capacity



0U


Rack mounting



Yes


Type



Single-phase


Features



Cable length



3 m


Certification



CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 61000-6-4:2007+A1:2011\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004


LED indicators



Yes


Management features



Firmware upgradeable



Yes


Firmware upgradeable via



Network, USB


Management protocols



SNMP, Telnet


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Depth (package,cm)



21.4 cm


Gross Weight (Package, kg)



1.29 kg


Height (package,cm)



173 cm


Width (package,cm)



20 cm


Packaging content



Cables included



LAN (RJ-45)


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



42 AC outlet(s)


Output connections



36 x C13 & 6 x C19


Power plug



IEC 60309


Power



AC input frequency



50 Hz


Maximum current



32 A


Maximum input current per phase



32 A


Maximum power



7400 Watt


Nominal input voltage



230 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



5.3 cm


Product Height



160.4 cm


Product Width



5.2 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



52 x 53 x 1604 mm
