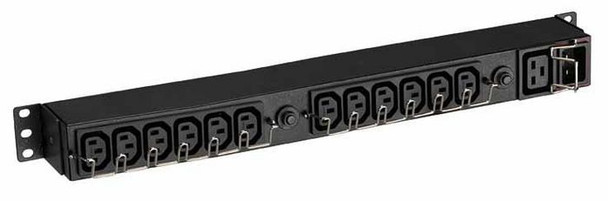

Eaton EFLX12I EFLX12I power distribution EFLX12I

These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.

Design



Cable colour



Black


Form factor



Rackmount


Mounting



Horizontal/Vertical


PDU types



Basic


Product colour



Black


Rack capacity



1U


Rack mounting



Yes


Type



Single-phase


Features



Certification



CE


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



0 - 45 �C


Package dimensions



Depth (package,cm)



47.5 cm


Gross Weight (Package, kg)



1.91 kg


Height (package,cm)



6.5 cm


Width (package,cm)



18.5 cm


Packaging content



Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



13 AC outlet(s)


Output connections



12 x C13 & 1 x C19


Power plug



C20 coupler


Power



AC input frequency



50 - 60 Hz


Load capacity



3000 VA


Maximum current



13 A


Maximum input current per phase



13 A


Maximum power



3000 Watt


Nominal input voltage



230 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



1.7 kg


Product Depth



8 cm


Product Height



4.4 cm


Product Width



48.3 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



439 x 58.5 x 43.4 mm


Size (imperial)



19 "
