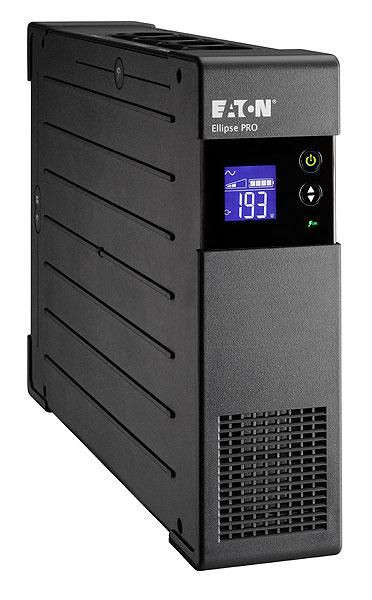

Eaton ELP1200FR Ellipse Pro 1200 Fr ELP1200FR

The Eaton Ellipse PRO 650�1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

- LCD display for real-time status and measurements.
- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
- Up to 8 outlets to connect your PC & peripherals.
- Convenient extra-flat design for easy installation in any office environment.
- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
- Protects data connections such as Ethernet, internet and telephone lines.

Battery



Automatic battery test



Yes


Battery technology



Sealed Lead Acid (VRLA)


Cold start



Yes


Hot-swap battery



No


Typical backup time at half load



9 min


Design



Display type



LCD


Form factor



Tower


LED indicators



Y, Yes


Product colour



Black


Rack capacity



2U


Safety



IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE


Features



Emergency Power Off (EPO)



Yes


Input frequency



50/60 Hz


Input operation voltage (max)



285 V


Input operation voltage (min)



150 V


Output frequency



50 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



220 V


Output power



750 Watt


Output power capacity



1.2 kVA


Surge protection



Yes


Surge protection features



Fax, Modem, Network, Telephone


UPS topology



Line-Interactive


Logistics data



Harmonized System (HS) code



85078000


Other features



Nominal input voltage



230 V


Package dimensions



Gross Weight (Package, kg)



12.87 kg


Ports & interfaces



AC outlet types



Type E


AC outlets quantity



8 AC outlet(s)


Ethernet LAN (RJ-45) ports



1


Modem (RJ-11) ports



1


Power plug



C14 coupler


USB 2.0 ports quantity



1


Product dimensions



Net Weight (Product, kg)



9.9 kg


Product Depth



39 cm


Product Height



27.5 cm


Product Width



8.2 cm


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)
