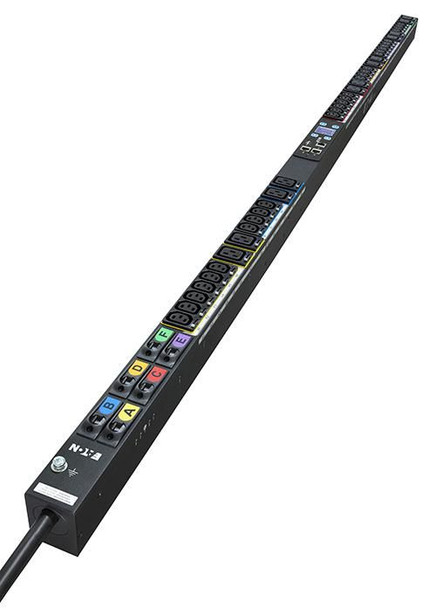

Eaton EMIB34 Power Distribution Unit Pdu EMIB34

ePDU G3 Metered Input models allow metering to the branch and phase level for effective load balancing, with no switching. Models include IEC Class 1 (�1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Design



Cable colour



Black


Display



LCD


Form factor



Rackmount


Mounting



Vertical


PDU types



Metered


Product colour



Black


Rack capacity



0U


Rack mounting



Yes


Type



Three-phase


Features



Cable length



3 m


LED indicators



Yes


Management features



Firmware upgradeable



Yes


Firmware upgradeable via



Network, USB


Management protocols



SNMP, Telnet


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Packaging content



Cables included



LAN (RJ-45)


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



42 AC outlet(s)


Ethernet LAN (RJ-45) ports



1


Output connections



30 x C13 & 12 x C19


Power plug



IEC 60309


Power



AC input frequency



50 Hz


Maximum current



32 A


Maximum input current per phase



32 A


Maximum power



22000 Watt


Nominal input voltage



400 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



5.2 cm


Product Height



6.5 cm


Product Width



182.9 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



1829 x 52 x 65 mm
