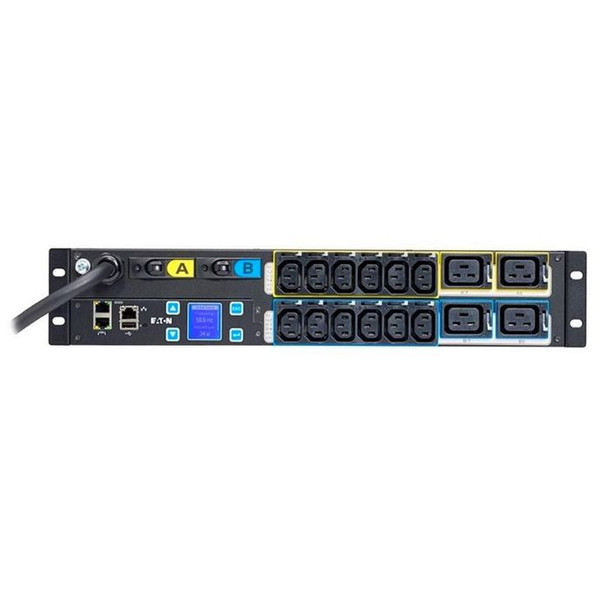

Eaton EMIH06 Power Distribution Unit Pdu EMIH06

Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontaly, vertically, or under a surface.

Design



Cable colour



Black


Form factor



Rackmount


Mounting



Horizontal/Vertical


PDU types



Metered


Product colour



Black


Rack capacity



2U


Rack mounting



Yes


Type



Single-phase


Features



Cable length



3 m


Certification



CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004


Management features



Firmware upgradeable



Yes


Firmware upgradeable via



Network, USB


Management protocols



SNMP, Telnet


Monitoring



Current


Supported network protocols



HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Packaging content



Cables included



LAN (RJ-45)


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



16 AC outlet(s)


Ethernet LAN (RJ-45) ports



1


Input connection type



IEC-320-C20


Output connections



12 x C13 & 4 x C19


Power plug



IEC 60309


Power



AC input frequency



50 Hz


Maximum current



32 A


Maximum input current per phase



32 A


Maximum power



7400 Watt


Nominal input voltage



230 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



48.26 cm


Product Height



12.7 cm


Product Width



8.89 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



88.9 x 482.6 x 127 mm
