EATON

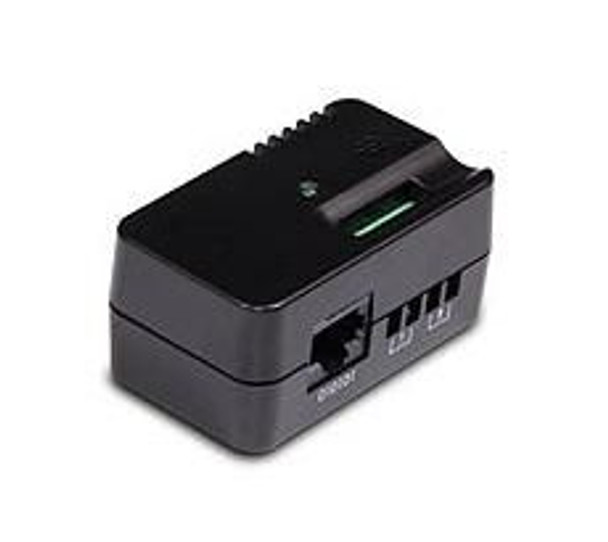

Eaton EMP001 ENVIRONMENTAL MONITORING PROBE EMP001
- UPC:
- 0743172037527
- MPN:
- EMP001
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The optional environmental monitoring probe (EMP) is a connectivity device that enables you to collect temperature and humidity readings in the rack environment and monitor the environmental data remotely via the onboard LCD screen or remotely using a Telnet connection or a standard web browser. You can also collect and retrieve the status of two contact devices.
- When temperature and humidity values exceed user-selectable limits, the event is logged in the ePDU event history log.
- The EMP monitors temperature and humidity information of any environment that you want to protect your critical equipment. The EMP measures temperatures from 32�F to 158�F (0�C to 70�C) with an accuracy of �3.6�F (�2�C).
- The EMP measures relative humidity from 10% to 90% with an accuracy of �5%.
- It can be located away from the ePDU with a CAT5 network cable up to 65.6 ft (20 m) long.
- The hot-swap feature simplifies installation by enabling you to install the probe safely without turning off power to the ePDU or to the loads that are connected to it.
- The EMP monitors the status of the two user-provided contact devices.
- Temperature, humidity, and contact closure status can be displayed through a web browser, a serial interface, or an onboard LCD interface.
- User-selectable alarm thresholds enable you to define acceptable temperature or humidity limits.
- Email notification through Simple Mail Transfer Protocol (SMTP), using email client software when acceptable alarm limits are exceeded or contact status changes.
- Changes in external contact status are logged in the ePDU event history log.
Logistics data
Harmonized System (HS) code
90318080
Operational conditions
Operating temperature (T-T)
0 - 80 �C
Package dimensions
Gross Weight (Package, kg)
5 kg
Product dimensions
Net Weight (Product, kg)
4 kg
Product Depth
3.8 cm
Product Height
7.1 cm
Product Width
5.1 cm
Technical details
Accuracy
5 %
Accuracy
1 �C
Connectivity technology
Wired
Harmonized System (HS) code
90318080
Humidity measuring range
10 - 90 %
LED indicators
Alarm
Purpose
Indoor
Sensor type
Temperature & humidity sensor
Standard interfaces
RJ-45
Type
Freestanding
Vendor information
Brand Name
Eaton
Warranty
2 Year(s)
View AllClose
- When temperature and humidity values exceed user-selectable limits, the event is logged in the ePDU event history log.
- The EMP monitors temperature and humidity information of any environment that you want to protect your critical equipment. The EMP measures temperatures from 32�F to 158�F (0�C to 70�C) with an accuracy of �3.6�F (�2�C).
- The EMP measures relative humidity from 10% to 90% with an accuracy of �5%.
- It can be located away from the ePDU with a CAT5 network cable up to 65.6 ft (20 m) long.
- The hot-swap feature simplifies installation by enabling you to install the probe safely without turning off power to the ePDU or to the loads that are connected to it.
- The EMP monitors the status of the two user-provided contact devices.
- Temperature, humidity, and contact closure status can be displayed through a web browser, a serial interface, or an onboard LCD interface.
- User-selectable alarm thresholds enable you to define acceptable temperature or humidity limits.
- Email notification through Simple Mail Transfer Protocol (SMTP), using email client software when acceptable alarm limits are exceeded or contact status changes.
- Changes in external contact status are logged in the ePDU event history log.
Logistics data
Harmonized System (HS) code
90318080
Operational conditions
Operating temperature (T-T)
0 - 80 �C
Package dimensions
Gross Weight (Package, kg)
5 kg
Product dimensions
Net Weight (Product, kg)
4 kg
Product Depth
3.8 cm
Product Height
7.1 cm
Product Width
5.1 cm
Technical details
Accuracy
5 %
Accuracy
1 �C
Connectivity technology
Wired
Harmonized System (HS) code
90318080
Humidity measuring range
10 - 90 %
LED indicators
Alarm
Purpose
Indoor
Sensor type
Temperature & humidity sensor
Standard interfaces
RJ-45
Type
Freestanding
Vendor information
Brand Name
Eaton
Warranty
2 Year(s)
