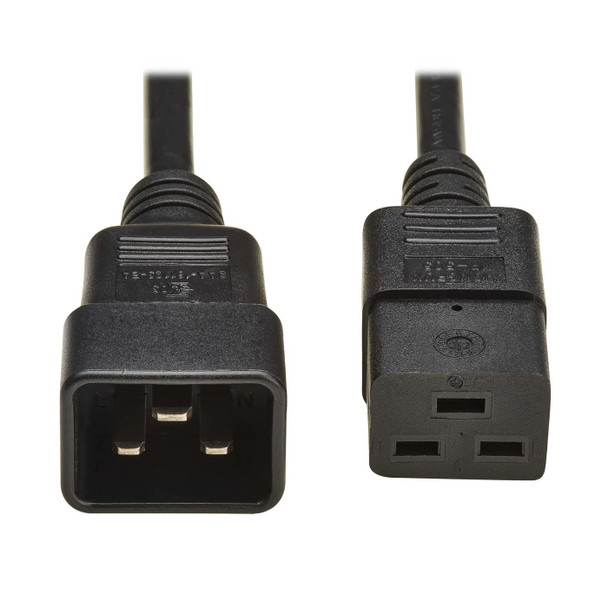

Eaton P036-02M-EU POWER CABLE C20 TO C19 P036-02M-EU

Connects high-output devices with C19/C20 power connectors, including routers and blade servers.

Power Cord Connects High-Output Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

Features



AWG wire size



16


Cable length



2 m


Cable type



H05VV-F


Certification



CE (Europe); REACH; RoHS; UKCA


Connector 1



IEC C20


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 1 standard



CEE 7/4


Connector 2



IEC C19


Connector 2 form factor



Straight


Connector 2 gender



Female


Jacket material



Polyvinyl chloride (PVC)


Number of conductors



3


Product colour



Black


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



-15 - 70 �C


Storage relative humidity (H-H)



20 - 80 %


Storage temperature (T-T)



-15 - 60 �C


Package dimensions



Depth (package,cm)



1.3 cm


Gross Weight (Package, kg)



1.16 kg


Height (package,cm)



25.4 cm


Width (package,cm)



20.3 cm


Packaging data



Quantity per pack



1 pc(s)


Power



Input current



16 A


Input voltage



250 V


Product dimensions



Net Weight (Product, kg)



0.89 kg


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Diameter



8.2 mm
