Eaton P056-02M- PDU POWER CORD C13 TO BS1363 P056-02M-UK

Connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet.

Power Cord Connects Data Center Equipment to Reliable AC Power

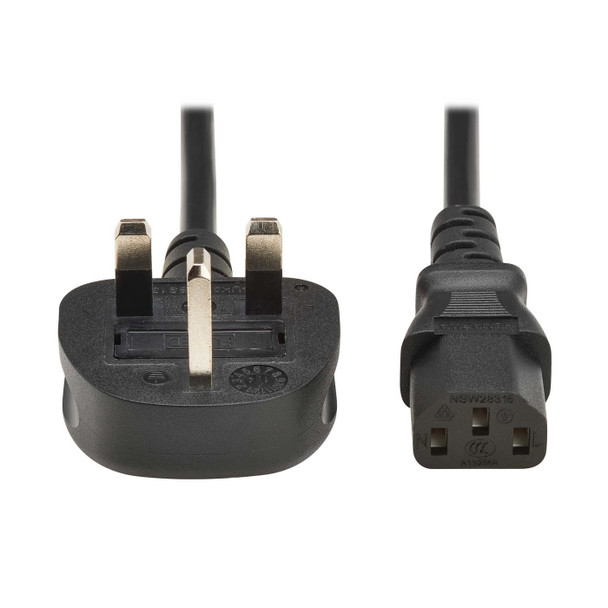

This VDE-compliant power cable connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet. It can also connect a computer, server, monitor or other device to a PDU, UPS or surge protector with BS 1363 outlets. Or you can extend an existing power connection up to two meters (6.6 feet). The P056-02M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

Features



AWG wire size



24


Cable length



2 m


Cable type



H05VV-F


Certification



CE (Europe); REACH; RoHS; UKCA


Connector 1



BS 1363


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 2



IEC C13


Connector 2 form factor



Straight


Connector 2 gender



Female


Jacket material



Polyvinyl chloride (PVC)


Number of conductors



3


Product colour



Black


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



-15 - 70 �C


Storage relative humidity (H-H)



20 - 80 %


Storage temperature (T-T)



-15 - 60 �C


Package dimensions



Depth (package,cm)



1.27 cm


Gross Weight (Package, kg)



1.16 kg


Height (package,cm)



22.91 cm


Width (package,cm)



17.81 cm


Packaging data



Quantity per pack



1 pc(s)


Power



Input current



10 A


Input voltage



250 V


Product dimensions



Net Weight (Product, kg)



0.89 kg


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Diameter



6.7 mm
