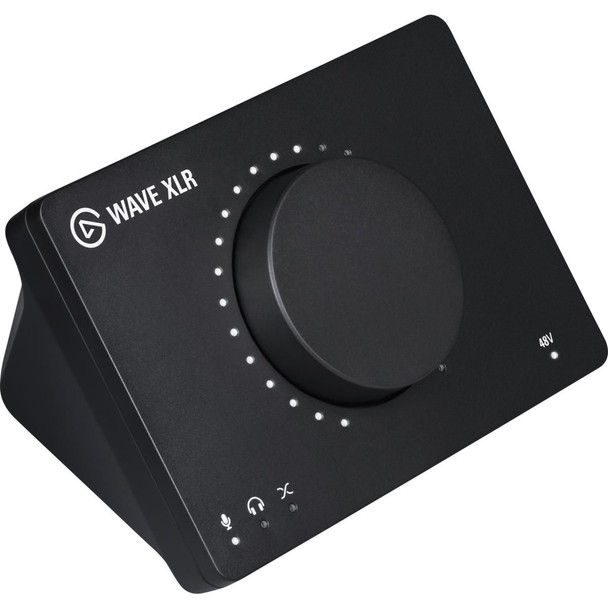

Elgato 10MAG9901 Wave Xlr 10MAG9901

Microphone Interface & Digital Mixing Solution

BRING YOUR MIC
You love your XLR microphone. You�ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.

ALL IN ONE, AND MORE
Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like proprietary anti-distortion technology, a capacitive mute button, direct integration with custom Wave Link mixing software, and an interchangeable faceplate.

CAPACITIVE SENSOR
Tap to mute

XLR INPUT
Connect your microphone

HIGH-POWER HEADPHONE OUTPUT
Crystal clear, zero-latency monitoring

USB TYPE-C
State-of-the-art connection

CHOOSE YOUR STYLE
Wave XLR comes in beautiful black

PLENTY OF POWER
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.

GET AMPED WITHOUT CLIPPING
Now you don�t need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak, proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream.

SWITCHABLE LOW-CUT FILTERS
Dual selectable filters let you remove low frequencies for close and distant mic positions.

YOUR WORKFLOW. EVOLVED.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks � anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously � all with a single tap. It�s advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.

AD/DA converter



A/D dynamic range



100 dB


A/D frequency range



20 - 20000 Hz


Audio A/D Converter (ADC)



24-bit/96kHz


Supported sample rates



48, 96


Features



Audio input



XLR


Audio output



3.5mm


Form factor



Desktop


LED indicators



Yes


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.39 kg


Packaging content



Cables included



USB


Quick start guide



Yes


Ports & interfaces



Device interface



USB Type-C


USB ports quantity



1


USB version



3.2 Gen 1 (3.1 Gen 1)


XLR input



1


Power



Power source



USB


Product dimensions



Net Weight (Product, kg)



0.3 kg


System requirements



Mac operating systems supported



Y, Yes


Windows operating systems supported



Windows 10


Vendor information



Brand Name


Elgato


Warranty



1 Year(s)
