Elo Touch Solutions
Elo Touch Solutions E144246 1517L. 15" desktoptouch. AT E144246
- UPC:
- 7411493348150
- MPN:
- E144246
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

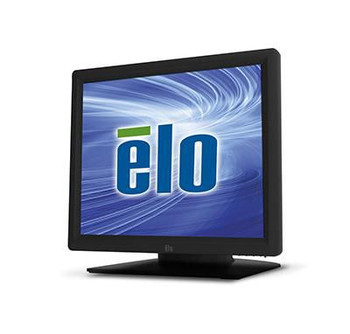

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch� five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch� five-wire resistive and IntelliTouch� surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Certificates
Certification
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
Design
Certification
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
Glass thickness
4.3 cm
Panel mounting interface
75 x 75
Placement supported
Horizontal
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Display
Aspect ratio
4:3
Contrast ratio (typical)
800:1
Display brightness
240 cd/m�
Display diagonal
15 "
Display number of colours
16.2 million colours
Display resolution
1024 x 768 Pixels
Display technology
LED
Display type
TFT
Display viewable area (HxV)
228 x 304 mm
Horizontal scan range
31.5 - 60 kHz
LED backlight
Yes
Native aspect ratio
4:3
Panel type
TFT
Response time
23 Millisecond
Screen shape
Flat
Supported graphics resolutions
720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Touch technology
Single-touch
Touchscreen
Yes
Touchscreen technology
Resistive
Vertical scan range
56 - 75 Hz
Viewable size, horizontal
22.81 cm
Viewable size, vertical
30.413 cm
Viewing angle, horizontal
160 �
Viewing angle, vertical
150 �
Ergonomics
LED indicators
Y, Yes
Number of OSD languages
8
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese
Panel mounting interface
75 x 75
Placement supported
Horizontal
VESA mounting
Yes
Wall mountable
Yes
Features
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85285210
Multimedia
Built-in camera
No
Built-in microphone
No
Operational conditions
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-20 - 60 �C
Other features
Built-in camera
No
Built-in microphone
No
LED indicators
Y, Yes
Placement supported
Horizontal
Power supply type
AC
Viewable size, horizontal
22.81 cm
Viewable size, vertical
30.413 cm
Voltage tolerance
5 %
Package dimensions
Depth (package,cm)
23.1 cm
Gross Weight (Package, kg)
3.2 kg
Height (package,cm)
48.5 cm
Width (package,cm)
48.7 cm
Packaging content
Cables included
AC, USB, VGA
Stand included
Yes
Performance
AMD FreeSync
No
Built-in camera
No
Built-in microphone
No
Mean time between failures (MTBF)
50000 Hour
Number of OSD languages
8
NVIDIA G-SYNC
No
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese
Touch technology
Single-touch
Touchscreen technology
Resistive
Touchscreen type
Tabletop
Ports & interfaces
RS-232 ports
1
USB 2.0 ports quantity
1
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.5 Watt
Power consumption (typical)
10.5 Watt
Power supply type
AC
Voltage tolerance
5 %
Product dimensions
Net Weight (Product, kg)
3.1 kg
Sustainability
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Technical details
Harmonized System (HS) code
85285210
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Vendor information
Brand Name
Elo Touch Solutions
Homepage
https://www.elotouch.com
Warranty
3 Year(s)
Weight & dimensions
Depth (with stand)
19.7 cm
Dimensions (W x D x H) with stand
358 x 197 x 319 mm
Height (with stand)
31.9 cm
Weight (with stand)
4.3 kg
Weight with stand
4.3 kg
Width (with stand)
35.8 cm
