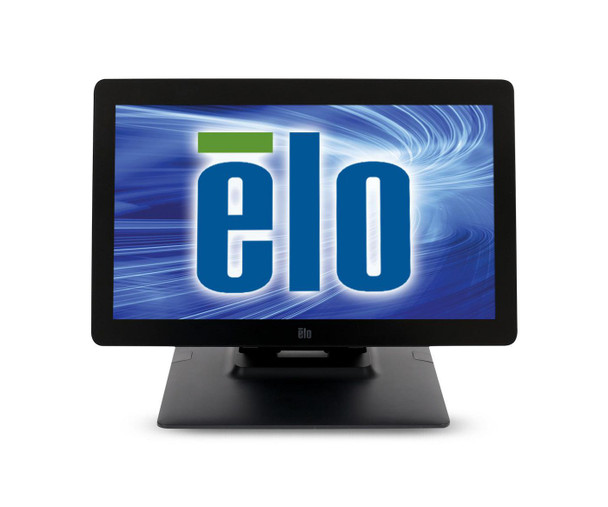

Elo Touch Solutions E318746 1502L 15.6-" wide HD LCD. E318746

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.

The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), customer display, barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1502L is offered with IntelliTouch Pro projected capacitive (PCAP) touch technology in a zero-bezel design with 10-touch interaction and an anti-glare surface.

Certificates



Certification



cUL, IC, Europe CE, Japan VCCI, United States UL, FCC


Design



Certification



cUL, IC, Europe CE, Japan VCCI, United States UL, FCC


Product colour



Black


Display



Aspect ratio



16:9


Contrast ratio (typical)



600:1


Display brightness



187 cd/m�


Display diagonal



15.6 "


Display number of colours



262144 colours


Display resolution



1366 x 768 Pixels


Display technology



LED


Display type



LED


Display viewable area (HxV)



345.2 x 194.6 mm


Horizontal scan range



31.5 - 60 kHz


Response time



10 Millisecond


Screen shape



Flat


Supported graphics resolutions



640 x 480 (VGA), 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768


Touch technology



Multi-touch


Touchscreen



Yes


Touchscreen technology



Projected capacitive system


Viewing angle, horizontal



90 �


Viewing angle, vertical



65 �


Ergonomics



Cable lock slot



Yes


Number of OSD languages



8


On Screen Display (OSD) languages



Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese


Panel mounting interface



75 x 75, 100 x 100


Features



Mean time between failures (MTBF)



50000 Hour


Product colour



Black


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in camera



No


Built-in microphone



No


Built-in speaker(s)



Yes


Number of speakers



2


RMS rated power



4 Watt


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Display viewable area (HxV)



345.2 x 194.6 mm


Energy efficiency class (old)



A


Full HD



No


Mean time between failures (MTBF)



50000 Hour


Package dimensions



Depth (package,cm)



18.1 cm


Gross Weight (Package, kg)



5.08 kg


Height (package,cm)



34.7 cm


Width (package,cm)



45.7 cm


Packaging content



Cables included



HDMI, VGA


Performance



AMD FreeSync



No


Built-in camera



No


Built-in microphone



No


Built-in speaker(s)



Yes


Mean time between failures (MTBF)



50000 Hour


Number of OSD languages



8


Number of speakers



2


NVIDIA G-SYNC



No


On Screen Display (OSD) languages



Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese


RMS rated power



4 Watt


Touch technology



Multi-touch


Touchscreen technology



Projected capacitive system


Ports & interfaces



HDMI



Yes


HDMI ports quantity



1


VGA (D-Sub) ports quantity



1


Power



AC adapter output voltage



12 V


AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Energy efficiency class



A


Energy efficiency class (old)



A


Power consumption (off)



0.2 Watt


Power consumption (typical)



12 Watt


Product dimensions



Net Weight (Product, kg)



3 kg


Product Depth



3.2 cm


Product Height



32.9 cm


Product Width



38.7 cm


Technical details



Harmonized System (HS) code



85285210


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com


Warranty



3 Year(s)


Weight & dimensions



Depth (without stand)



3.29 cm


Height (without stand)



24.44 cm


Weight (with stand)



3.05 kg


Weight (without stand)



3 kg


Weight with stand



3.05 kg


Width (without stand)



38.7 cm
