Elo Touch Solutions
Elo Touch Solutions E335119 1991L. 19". Secure Touch E335119
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- E335119
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

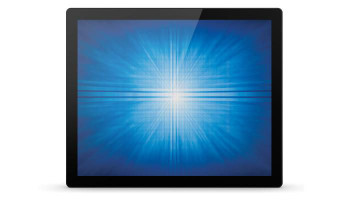

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission�for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users� attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro� PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality�both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch� five-wire resistive, IntelliTouch� SAW or SecureTouch� anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Certificates
RoHS compliance
Yes
Design
Panel mounting interface
75 x 75, 100 x 100
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Display
Aspect ratio
5:4
Backlight type
LED
Contrast ratio (typical)
1000:1
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Display brightness
200 cd/m�
Display diagonal
19 "
Display number of colours
16.78 million colours
Display resolution
1280 x 1024 Pixels
Display technology
LCD/TFT
Display viewable area (HxV)
374.78 x 299.83 mm
High frequency rate
60 Hz
Horizontal scan range
30 - 82 kHz
LED backlight
Yes
Maximum refresh rate
60 Hz
Response time
14 Millisecond
Screen shape
Flat
Touch technology
Single-touch
Touchscreen
Yes
Touchscreen technology
Surface acoustic wave
Touchscreen type
Kiosk
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
178 �
Viewing angle, vertical
178 �
Ergonomics
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Panel mounting interface
75 x 75, 100 x 100
VESA mounting
Yes
Wall mountable
Yes
Features
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85285210
Multimedia
Built-in camera
No
Operational conditions
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-20 - 60 �C
Other features
Aspect ratio
5:4
Backlight type
LED
Built-in camera
No
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Display viewable area (HxV)
374.78 x 299.83 mm
Full HD
No
Maximum refresh rate
60 Hz
Mean time between failures (MTBF)
50000 Hour
Power supply type
DC
USB 2.0 ports quantity
1
Weight (without stand)
4.6 kg
Package dimensions
Depth (package,cm)
19 cm
Gross Weight (Package, kg)
3 kg
Height (package,cm)
45 cm
Width (package,cm)
52.6 cm
Performance
AMD FreeSync
No
Built-in camera
No
Mean time between failures (MTBF)
50000 Hour
NVIDIA G-SYNC
No
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Touch technology
Single-touch
Touchscreen technology
Surface acoustic wave
Touchscreen type
Kiosk
Ports & interfaces
DisplayPorts quantity
1
HDMI
Yes
HDMI ports quantity
1
Number of upstream ports
1
USB 2.0 ports quantity
1
VGA (D-Sub) ports quantity
1
Power
Power consumption (off)
0.5 Watt
Power consumption (typical)
17 Watt
Power supply type
DC
Product dimensions
Net Weight (Product, kg)
2.9 kg
Sustainability
Sustainability certificates
RoHS
Technical details
Full HD
No
Harmonized System (HS) code
85285210
Sustainability certificates
RoHS
Vendor information
Brand Name
Elo Touch Solutions
Homepage
https://www.elotouch.com/1991l-revb.html
Warranty
3 Year(s)
Weight & dimensions
Weight (without stand)
4.6 kg
View AllClose
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro� PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality�both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch� five-wire resistive, IntelliTouch� SAW or SecureTouch� anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Certificates
RoHS compliance
Yes
Design
Panel mounting interface
75 x 75, 100 x 100
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Display
Aspect ratio
5:4
Backlight type
LED
Contrast ratio (typical)
1000:1
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Display brightness
200 cd/m�
Display diagonal
19 "
Display number of colours
16.78 million colours
Display resolution
1280 x 1024 Pixels
Display technology
LCD/TFT
Display viewable area (HxV)
374.78 x 299.83 mm
High frequency rate
60 Hz
Horizontal scan range
30 - 82 kHz
LED backlight
Yes
Maximum refresh rate
60 Hz
Response time
14 Millisecond
Screen shape
Flat
Touch technology
Single-touch
Touchscreen
Yes
Touchscreen technology
Surface acoustic wave
Touchscreen type
Kiosk
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
178 �
Viewing angle, vertical
178 �
Ergonomics
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Panel mounting interface
75 x 75, 100 x 100
VESA mounting
Yes
Wall mountable
Yes
Features
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85285210
Multimedia
Built-in camera
No
Operational conditions
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-20 - 60 �C
Other features
Aspect ratio
5:4
Backlight type
LED
Built-in camera
No
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Display viewable area (HxV)
374.78 x 299.83 mm
Full HD
No
Maximum refresh rate
60 Hz
Mean time between failures (MTBF)
50000 Hour
Power supply type
DC
USB 2.0 ports quantity
1
Weight (without stand)
4.6 kg
Package dimensions
Depth (package,cm)
19 cm
Gross Weight (Package, kg)
3 kg
Height (package,cm)
45 cm
Width (package,cm)
52.6 cm
Performance
AMD FreeSync
No
Built-in camera
No
Mean time between failures (MTBF)
50000 Hour
NVIDIA G-SYNC
No
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Touch technology
Single-touch
Touchscreen technology
Surface acoustic wave
Touchscreen type
Kiosk
Ports & interfaces
DisplayPorts quantity
1
HDMI
Yes
HDMI ports quantity
1
Number of upstream ports
1
USB 2.0 ports quantity
1
VGA (D-Sub) ports quantity
1
Power
Power consumption (off)
0.5 Watt
Power consumption (typical)
17 Watt
Power supply type
DC
Product dimensions
Net Weight (Product, kg)
2.9 kg
Sustainability
Sustainability certificates
RoHS
Technical details
Full HD
No
Harmonized System (HS) code
85285210
Sustainability certificates
RoHS
Vendor information
Brand Name
Elo Touch Solutions
Homepage
https://www.elotouch.com/1991l-revb.html
Warranty
3 Year(s)
Weight & dimensions
Weight (without stand)
4.6 kg
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
