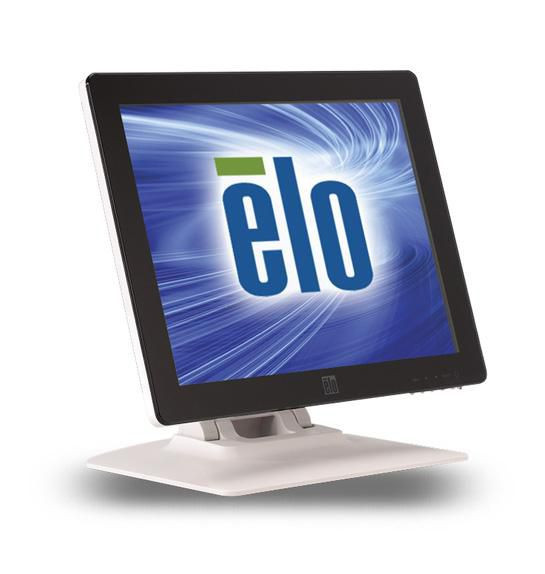

Elo Touch Solutions E336518 1523L PCAP PRO WHITE E336518

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.

The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

Design



Product colour



White


Display



Aspect ratio



4:3


Contrast ratio (typical)



700:1


Display brightness



215 cd/m�


Display diagonal



15 "


Display resolution



1024 x 768 Pixels


Display viewable area (HxV)



304 x 228 mm


Native aspect ratio



4:3


Response time



25 Millisecond


Screen shape



Flat


Supported graphics resolutions



720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)


Touchscreen



Yes


Touchscreen technology



Surface acoustic wave


Viewing angle, horizontal



160 �


Viewing angle, vertical



140 �


Ergonomics



Wall mountable



Yes


Features



Mean time between failures (MTBF)



50000 Hour


Product colour



White


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in speaker(s)



Yes


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Dimensions (W x D x H) with stand



358 x 318 x 199 mm


Display viewable area (HxV)



304 x 228 mm


Mean time between failures (MTBF)



50000 Hour


USB 2.0 ports quantity



2


Package dimensions



Gross Weight (Package, kg)



0.99 kg


Performance



AMD FreeSync



No


Built-in speaker(s)



Yes


Mean time between failures (MTBF)



50000 Hour


NVIDIA G-SYNC



No


Touchscreen technology



Surface acoustic wave


Ports & interfaces



DVI port



Yes


DVI-D ports quantity



1


Number of upstream ports



1


USB 2.0 ports quantity



2


USB Type-A downstream ports quantity



2


VGA (D-Sub) ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.25 kg


Technical details



Harmonized System (HS) code



85285210


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com


Warranty



3 Year(s)


Weight & dimensions



Depth (with stand)



31.8 cm


Dimensions (W x D x H) with stand



358 x 318 x 199 mm


Height (with stand)



19.9 cm


Weight (with stand)



4.44 kg


Weight with stand



4.44 kg


Width (with stand)



35.8 cm
