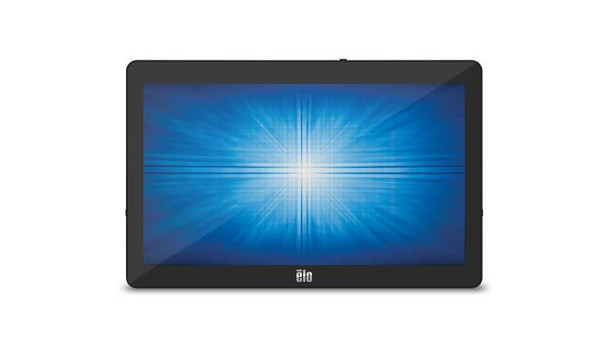

Elo Touch Solutions E442550 EloPOS System. 15-" Wide E442550

EloPOS� System Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel�s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo�s standard 3-year warranty.

Interactive Points of Sale

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices � there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.

Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

Add a Customer-Facing
Display with Ease

The EloPOS System includes USB-C connectivity, allowing you to easily connect a customer-facing - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo Edge Connect� Lets You do More!

Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Windows or Linux. You Choose.

EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro� and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.

Retail-Hardened

Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare Advance Exchange options - making EloPOS the ideal product for point of sale applications.

Get Peace of Mind With EloCareSM

Your point of sale system is central to your operation, and no one wants to experience difficulty during the checkout process. With EloCare Advance Exchange, in the event you have an issue, all you have to do is call Elo. We will have you up and running as soon as possible by shipping you a replacement unit.*

*This program is available for customers within the United States and Canada.

Certificates



Certification



UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC


Display



Aspect ratio



16:9


Contrast ratio (typical)



400:1


Display brightness



220 cd/m�


Display diagonal



15 "


Display number of colours



262144 colours


Display resolution



1366 x 768 Pixels


Display type



LCD


Effective viewing area



344.2 x 193.5 mm


Response time



10 Millisecond


Touchscreen



Yes


Touchscreen technology



Projected capacitive system


Viewing angle, horizontal



45 �


Viewing angle, vertical



50 �


Ergonomics



Mean time between failures (MTBF)



50000 Hour


Panel mounting interface



75 x 75


VESA mounting



Yes


Wall mountable



Yes


Features



Certification



UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC


Harmonized System (HS) code



84715000


Graphics



Graphics card



UHD Graphics 630


Graphics card manufacturer



Intel


Maximum on-board graphics card memory



64 GB


Logistics data



Harmonized System (HS) code



84715000


Memory



Internal memory



8 GB


Internal memory type



DDR4-SDRAM


Maximum internal memory



32 GB


Memory clock speed



2400 MHz


Memory slots type



SO-DIMM


Number of memory slots



2


Multimedia



Built-in speaker(s)



Yes


Number of speakers



2


Network



Bluetooth



Yes


Ethernet LAN



Yes


Ethernet LAN data rates



1000


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 35 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



21.6 cm


Gross Weight (Package, kg)



4.9 kg


Height (package,cm)



34.6 cm


Width (package,cm)



46.2 cm


Packaging content



Cables included



AC, LAN (RJ-45), Serial


Power adapter included



Yes


Quick start guide



Yes


Performance



Trusted Platform Module (TPM)



Yes


Trusted Platform Module (TPM) version



2.0


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



3


Line-out



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Power



AC adapter output voltage



24 V


AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



74 Watt


Power supply



180 Watt


Processor



Motherboard chipset



Intel Q370


Processor cache



9 MB


Processor cores



6


Processor family



Intel� Core� i5


Processor frequency



2.1 GHz


Processor generation



8th gen Intel� Core� i5


Processor model



i5-8500T


Processor threads



6


System bus rate



8 GT/s


Product dimensions



Net Weight (Product, kg)



2.9 kg


Product Depth



7.33 cm


Product Height



24.89 cm


Product Width



38.62 cm


Security



Cable lock slot



Yes


Software



Operating system installed



No


Storage



Number of storage drives supported



1


SSD capacity



128 GB


SSD form factor



M.2


SSD interface



Serial ATA


Storage media



SSD


Storage media type



SSD


Total storage capacity



128 GB


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com/elopos-system.html


Warranty



3 Year(s)
