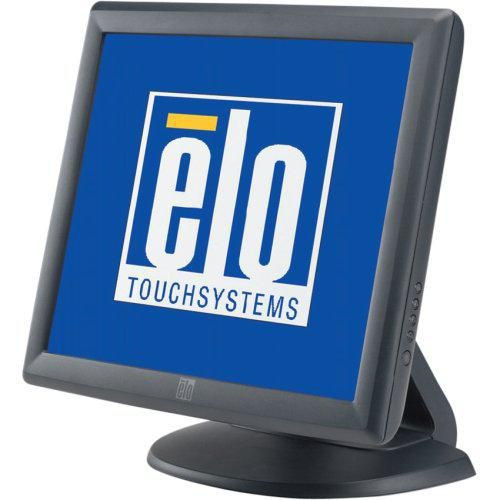

Elo Touch Solutions E603162 1715L. 17". desktop touch. AT E603162

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

AccuTouch Five-Wire Resistive Touch Technology
Elo developed AccuTouch technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes and washdown, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.

Design



Product colour



Grey


Display



Aspect ratio



5:4


Contrast ratio (typical)



1000:1


Display brightness



200 cd/m�


Display diagonal



17 "


Display number of colours



16.78 million colours


Display resolution



1280 x 1024 Pixels


Display technology



LCD


Display type



LCD


Glossy display



No


Response time



5 Millisecond


Screen shape



Flat


Touch technology



Single-touch


Touchscreen



Yes


Touchscreen technology



Resistive


Touchscreen type



Kiosk


Viewing angle, horizontal



170 �


Viewing angle, vertical



160 �


Ergonomics



On Screen Display (OSD)



Yes


Panel mounting interface



100 x 100


Wall mountable



Yes


Features



Mean time between failures (MTBF)



50000 Hour


Product colour



Grey


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in speaker(s)



No


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Compatible operating systems



POSReady 2009; Windows Vista, XP, 7, 2000, CE; Linux; Mac OSX


Dimensions (W x D x H) with stand



391 x 203 x 366 mm


Mean time between failures (MTBF)



50000 Hour


On Screen Display (OSD)



Yes


Package dimensions



Gross Weight (Package, kg)



9.13 kg


Performance



AMD FreeSync



No


Built-in speaker(s)



No


Compatible operating systems



POSReady 2009; Windows Vista, XP, 7, 2000, CE; Linux; Mac OSX


Mean time between failures (MTBF)



50000 Hour


NVIDIA G-SYNC



No


On Screen Display (OSD)



Yes


Touch technology



Single-touch


Touchscreen technology



Resistive


Touchscreen type



Kiosk


Ports & interfaces



I/O ports



Serial/USB


USB required



Yes


VGA (D-Sub) ports quantity



1


Power



AC adapter output voltage



12 V


AC input frequency



50 - 60 Hz


Power consumption (typical)



36 Watt


Product dimensions



Net Weight (Product, kg)



9.030000000000001 kg


Technical details



Harmonized System (HS) code



85285210


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com


Warranty



3 Year(s)


Weight & dimensions



Depth (with stand)



20.3 cm


Dimensions (W x D x H) with stand



391 x 203 x 366 mm


Height (with stand)



36.6 cm


Weight (without stand)



6.9 kg


Width (with stand)



39.1 cm
