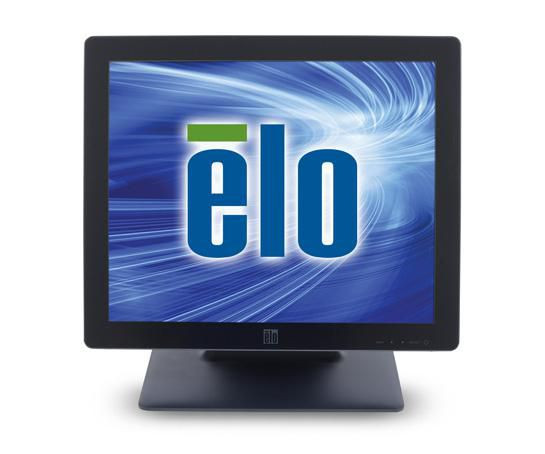

Elo Touch Solutions E683457 1723L PCAP. 10 Touch 5:4 E683457

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.

The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.

- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam.
- Integrated cable management.
- IntelliTouch Pro projected capacitive and IntelliTouch Zero-Bezel surface acoustic wave touchscreens couple zero-bezel design with multi-touch functionality.
- Dual position stand - single hinge with high/low settings and tilt functionality.
- Desktop, wall or VESA mounting.
- Internal speakers.

Design



Product colour



Black


Display



Aspect ratio



5:4


Contrast ratio (typical)



800:1


Display brightness



215 cd/m�


Display diagonal



17 "


Display number of colours



16.78 million colours


Display resolution



1280 x 1024 Pixels


Display viewable area (HxV)



337 x 270 mm


Native aspect ratio



5:4


Response time



30 Millisecond


Screen shape



Flat


Supported graphics resolutions



720 x 400, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 640 x 480 (VGA), 800 x 600 (SVGA)


Touchscreen



Yes


Touchscreen technology



Surface acoustic wave


Viewing angle, horizontal



170 �


Viewing angle, vertical



160 �


Ergonomics



Panel mounting interface



75 x 75


Wall mountable



Yes


Features



Mean time between failures (MTBF)



50000 Hour


Product colour



Black


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in speaker(s)



Yes


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Dimensions (W x D x H) with stand



391 x 360 x 209 mm


Display viewable area (HxV)



337 x 270 mm


Mean time between failures (MTBF)



50000 Hour


USB 2.0 ports quantity



2


Package dimensions



Gross Weight (Package, kg)



8.5 kg


Performance



AMD FreeSync



No


Built-in speaker(s)



Yes


Mean time between failures (MTBF)



50000 Hour


NVIDIA G-SYNC



No


Touchscreen technology



Surface acoustic wave


Ports & interfaces



Number of upstream ports



1


USB 2.0 ports quantity



2


USB Type-A downstream ports quantity



2


Product dimensions



Net Weight (Product, kg)



5.21 kg


Technical details



Harmonized System (HS) code



85285210


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com


Warranty



3 Year(s)


Weight & dimensions



Depth (with stand)



36 cm


Dimensions (W x D x H) with stand



391 x 360 x 209 mm


Height (with stand)



20.9 cm


Weight (with stand)



5.21 kg


Weight with stand



5.21 kg


Width (with stand)



39.1 cm
