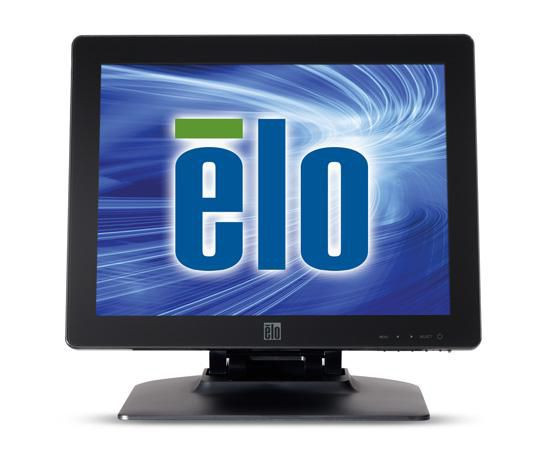

Elo Touch Solutions E738607 1523L. 15". PCAP Pro. Black E738607

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.

The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

Design



Product colour



Black


Display



Aspect ratio



4:3


Contrast ratio (typical)



700:1


Digital horizontal frequency



31 - 80 kHz


Digital vertical frequency



56 - 75 Hz


Display brightness



270 cd/m�


Display diagonal



15 "


Display number of colours



16.2 million colours


Display resolution



1024 x 768 Pixels


Display technology



LCD


Display viewable area (HxV)



229.1 x 305.1 mm


LED backlight



Yes


Native aspect ratio



4:3


Response time



16 Millisecond


Screen shape



Flat


Supported graphics resolutions



640 x 480 (VGA), 1024 x 768 (XGA), 720 x 400, 800 x 600 (SVGA)


Touchscreen



Yes


Touchscreen technology



Projected capacitive system


Viewable size, horizontal



30.51 cm


Viewable size, vertical



22.91 cm


Viewing angle, horizontal



160 �


Viewing angle, vertical



140 �


Ergonomics



Panel mounting interface



75 x 75


Wall mountable



Yes


Features



Mean time between failures (MTBF)



50000 Hour


Product colour



Black


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in speaker(s)



Yes


Number of speakers



2


RMS rated power



4 Watt


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Dimensions (W x D x H) with stand



358.1 x 199.1 x 318.5 mm


Display viewable area (HxV)



229.1 x 305.1 mm


Mean time between failures (MTBF)



50000 Hour


USB 2.0 ports quantity



2


Package dimensions (verified)



Depth Verified



44 cm


Gross Weight Verified



6.61 kg


Height Verified



20 cm


Width Verified



38 cm


Performance



AMD FreeSync



No


Built-in speaker(s)



Yes


Mean time between failures (MTBF)



50000 Hour


Number of speakers



2


NVIDIA G-SYNC



No


RMS rated power



4 Watt


Touchscreen technology



Projected capacitive system


Ports & interfaces



DVI port



Yes


DVI-D ports quantity



1


Number of upstream ports



1


USB 2.0 ports quantity



2


USB Type-A downstream ports quantity



2


Power



Power consumption (off)



0.2 Watt


Power consumption (standby)



1.2 Watt


Power consumption (typical)



10.5 Watt


Product dimensions



Net Weight (Product, kg)



6.510000000000001 kg


Technical details



Harmonized System (HS) code



85285210


Vendor information



Brand Name


Elo Touch Solutions


Homepage



https://www.elotouch.com


Warranty



3 Year(s)


Weight & dimensions



Depth (with stand)



19.91 cm


Dimensions (W x D x H) with stand



358.1 x 199.1 x 318.5 mm


Height (with stand)



31.85 cm


Weight (with stand)



4.2 kg


Weight with stand



4.2 kg


Width (with stand)



35.81 cm
