Enermax EMB750EWT Cyberbron Power Supply Unit EMB750EWT

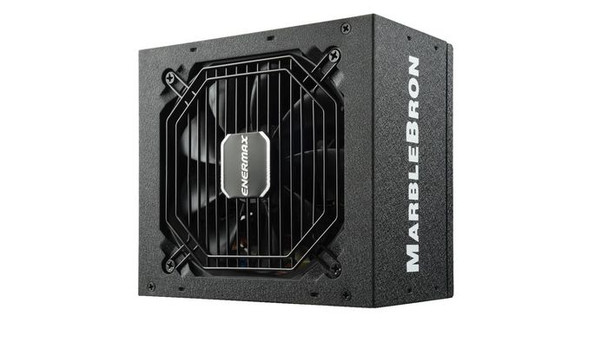

The MARBLEBRON is a semi-modular power supply with high functionality and sophisticated design. It is 80 PLUS Bronze certified and has first-class Japanese 105�C electrolytic capacitors for excellent reliability. Equipped with DC-to-DC technology, it ensures a stable power output even under alternating loads. The 120 mm high-pressure fan is kept at a constant low speed with a silent 14 dB(A) with the integrated SAC (Smart Air Control) up to a load of 40%. The MARBLEBRON is perfectly suited for mainstream gaming, multimedia, and home theater systems.

Efficiency
The 80 PLUS Bronze-certified power supply achieves up to 88% efficiency at 230VAC with a 50% load. This not only results in low heat generation but also reduces its own CO2 footprint.

MARBLEBRON helps systems to meet the EU eco-design directive 2010 ErP Lot 6 (< 1W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry. Moreover, it supports EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
* only in combination with an ErP ready mainboard

Power
The DC-to-DC design generates the secondary voltages (+5V and +3.3V) from the primary voltage rail (+12V). The positive effect is higher efficiency, clean output voltages (low ripple noise), and perfect voltage regulation at all loads.

A stable 12V rail to deliver power to high-performance processors and graphics cards without having to distribute the load over several rails.

Cooling
The integrated 12cm Enermax high-pressure fan with patented Twister Bearing� technology generates a compressed airstream to cool down critical PSU components more rapidly.

The SAC (Smart Airflow Control) design keeps the PSU fan spinning at almost inaudible 14dB(A), up to a system load of 40%, to provide silent operation.

Connectivity
The semi-modular design allows you to remove unnecessary cables for a clean and easy installation. The flat cables are more flexible than conventional sheathed cables and can be routed more easily through narrow spaces. This allows clean cable management behind the case panel and contributes to improved airflow within the case.

Compatibility
Intel ATX12V v2.4, compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.

Full support of the C6/C7 energy-saving functions of Intel processors, first introduced with the Haswell generation.

Worldwide compatibility with automatic 100-240VAC input and up to 0.99 with active Power Factor Correction (PFC).

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Depth (package,cm)



21.1 cm


Gross Weight (Package, kg)



2.08 kg


Height (package,cm)



9.5 cm


Width (package,cm)



24.8 cm


Packaging content



Cables included



AC


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.4


Bearing technology



Twister


Certification



cTUVus, CE, FCC, BSMI, CCC


Mean time between failures (MTBF)



160000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX Power connector (24-pin)



Yes


Cabling type



Semi-Modular


CPU power connector (4+4 pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power connector



24-pin ATX


Number of SATA power connectors



8


PCI Express connector



Yes


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power connectors (4-pin)



4


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



744 Watt


Combined power (+3.3V)



130 Watt


Combined power (+5V)



130 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Input current



11-5.5 A


Max output current (+12V1)



62 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Over voltage, Overheating, Short circuit


Total power



750 Watt


Product dimensions



Net Weight (Product, kg)



1.6 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Enermax


Warranty



1 Year(s)
