Enermax

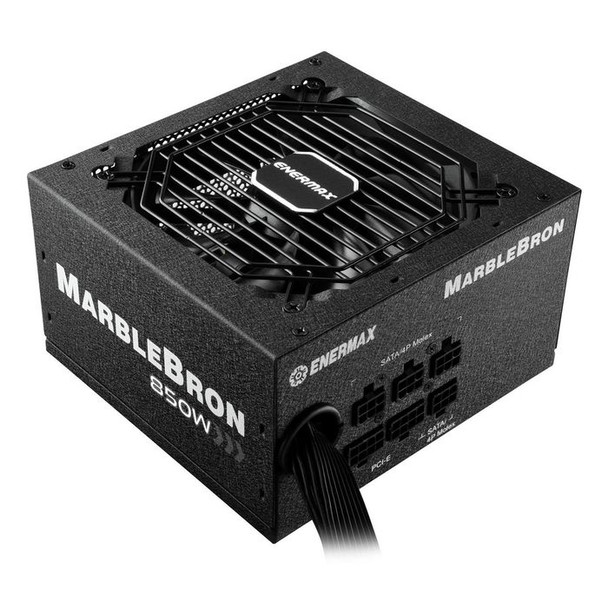

Enermax EMB850EWT Marblebron Power Supply Unit EMB850EWT
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EMB850EWT
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
80 PLUS� Bronze certified with 88% efficiency @50% load
Reduce unnecessary power consumption and excess heat to conserve energy to reduce carbon footprint and lower electric bill
Semi-modular design low-profile black flat cables
- Connect only the cables you need
- Highly flexible and easy to assemble
- Easy to bend and storage inside the case
- Make cable management easier and improve the airflow inside the PSU-shroud design chassis
High-quality Japanese 105�C electrolytic capacitors
Provide long-term durability and reliability to ensure PSU have longer lifespan and avoid buying new one in short-term
Multiple protection circuitries of OVP, UVP, OPP, OTP and SCP
PSU will shut down immediately in any dangerous situation to prevent the system from breaking down and keeping all the components intact
DC to DC design with 12V single rail
Delivers stable DC output and supports high-end graphics cards and processors
Design
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Black
Package dimensions
Depth (package,cm)
21.1 cm
Gross Weight (Package, kg)
0.65 kg
Height (package,cm)
9.5 cm
Width (package,cm)
24.8 cm
Performance
80 PLUS certification
80 PLUS Bronze
Mean time between failures (MTBF)
100000 Hour
Purpose
PC
Ports & interfaces
Cabling type
Semi-Modular
CPU power cable length
65 cm
CPU power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
60 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
6
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
4
Power
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
840 Watt
Combined power (+3.3V)
130 Watt
Combined power (+5Vsb)
130 Watt
Input current
11-5.5 A
Max output current (+12V1)
70 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Power protection features
Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power
850 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
14 cm
Product Height
8.6 cm
Product Width
15 cm
Vendor information
Brand Name
Enermax
Warranty
1 Year(s)
