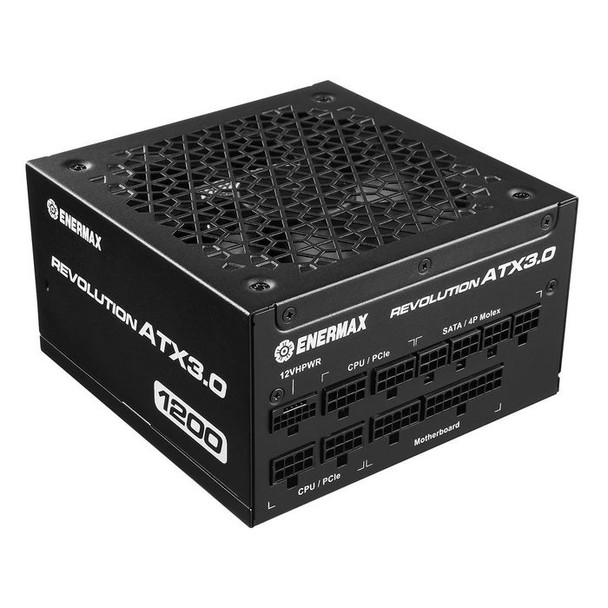

Enermax ERA1200EWT Revolution Power Supply Unit ERA1200EWT

FULLY COMPATIBLE WITH INTEL ATX 3.0 SPECIFICATIONS
REVOLUTION ATX 3.0 series is fully compatible with Intel ATX 3.0 specification which will unlock the full power potential of next-generation hardware. Each power will come with a native 12+4 pin (12VHPWER) cable and extra dual 8 pin to12+4 pin (12VHPWER) cable to offer you the most advanced performance.

ATX 3.0 WITH POWER EXCURSION TO 200%
The new specifications of ATX 3.0 will have a positive impact for power and performance improvements across all desktop segments. It can sustain up to 200% power load for power excursion, reach 60%-70% efficiency even during low loading and shorter power-on time to make you power up your system faster.

FULL POWER POTENTIAL WITH PCIe GEN 5.0 NATIVE CABLE
REVOLUTION ATX 3.0 comes with native 12+4 pin 12VHPWR cable that directly supply up to 600W to the latest NVIDIA graphics cards for gamers and creators to have the most stable and powerful system they will ever have.

EXTRA CABLE TO SUPPORT TWO GRAPHICS CARDS
REVOLUTION ATX 3.0 will also come with another dual PCIe 8pin to 12VHPWR cable in the box for you to install up to two high-end graphics cards to get an even better performance and experience.

HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending.

BUILD FOR ALL GRAPHICS CARDS
With the need of extra power for graphics cards, the REVOLUTION ATX 3.0 is designed to support all of the AMD, Intel and NVIDIA graphics cards according to their different types of power connectors.

SUPERIOR EFFICIENCY AND THE BEST QUALITY
With up to 92% efficiency and the best quality Japanese electrolytic capacitors to reduce unnecessary power consumption, save energy and create lower temperature.

PUSH FOR ABSOLUTE SILENCE
Designed with ENERMAX Semi-Fanless Tech, fan will be completely off until the load exceeds 30% for you to enjoy absolute silence of 0 dB(A) during minimum load. The fan control button next to the power switch allows you to turn off the function as you need and ensure active cooling for all time.

RELIABLE AND SAFE FOR YOUR SYSTEM
REVOLUTION ATX 3.0 applied advanced LLC and Synchronous Rectifier (SR) design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.

CABLE AND POWER AS YOU NEED
Only connect the cable you need with full modular design. REVOLUTION ATX 3.0 will also deliver the power you need for the best compatibility and avoid overloading with single rail +12V design.

Design



Built-in display



No


Cooling type



Active


Fan diameter



13.5 cm


Fan location



Top


Illumination



No


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Package dimensions



Depth (package,cm)



33.7 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



11.7 cm


Width (package,cm)



22.7 cm


Packaging content



Cables included



CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Gold


ATX version



3.0


Bearing technology



FDB


Mean time between failures (MTBF)



100000 Hour


Purpose



PC


Silent mode



Yes


Ports & interfaces



Cabling type



Semi-Modular


CPU power cable length



70 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



6 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



12


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



150, 500


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



150, 500


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Efficiency



90 %


Input current



15 A


Max output current (-12V)



0.3 A


Max output current (+12V)



100 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



3 A


Power protection features



Over power, Overheating, Over voltage, Under voltage, Over current, Short circuit


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Enermax


Warranty



1 Year(s)
