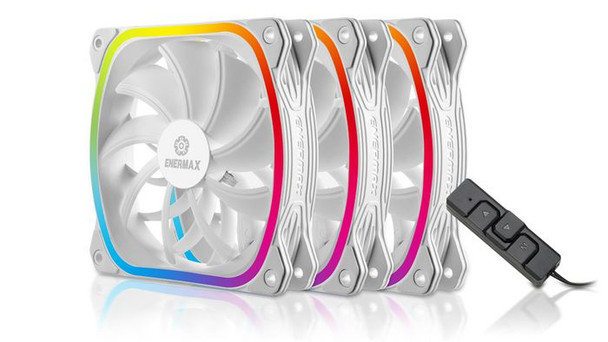

Enermax UCSQARGB12P-W-BP3 Squa Rgb White Computer Case UCSQARGB12P-W-BP3

The SquA RGB White addressable RGB fan series is equipped with a square-shaped frame powered by ENERMAX LED LIGHTING Technology, which provides incredibly bright and even lighting. The addressable RGB LEDs can create colourful rainbow effects and allow synchronization with supported motherboard software. SquA RGB White is designed for silent operation without compromising performance and therefore has a starting speed of 300 rpm and up to 40% more airflow than other RGB fans. To optimize the airstream SquA RGB generates concentrated vortex with the Vortex Frame Design and facilitates air inlet effectively with the ENERMAX�s Air Inlet Design.

Addressable RGB LED Lighting
SquA RGB White fans support addressable RGB technology for a unique RGB lighting experience. The square-shaped frame equipped with the ENERMAX LED Lighting Technology offers bright and even illumination without visible LED spots.

Sparkling Backside
SquA RGB White is equipped with light vents on the backside of the frame creating a diamond-like effect where other RGB fans just show black.

Silent Operation
The fan blades of SquA RGB White are optimized for silent operation and the speed can be turned down to 300 RPM.

SquA RGB White�s frame is equipped with rubber damping pads to prevent vibration transfer to the chassis and to ensure low noise operation.

Addressable RGB Lighting Synchronization
Synchronizable RGB lighting via addressable RGB header of motherboards from Asus, Asrock, MSI and Gigabyte. Programmable lighting effects via motherboards software. Razer Chroma support with compatible motherboards of Asrock and MSI.

Note: Addressable RGB LEDs run on 5V, do not connect them to a non-addressable 4 pin header with 12V.

Airflow Optimization
Efficient integration of the RGB Frame results in an increased blade surface, which gives SquA RGB White 40% more airflow compared to other RGB fans.
To optimize the airstream SquA RGB White generates concentrated vortex with the Vortex Frame Design and facilitates air inlet effectively with the ENERMAX�s Air Inlet Design.

Control Box
The integrated RGB control box offers quick setup of 10 pre-set lighting effects without the need of a RGB motherboard or additional software.

Design



Fan connector



4-pin + 4-pin


Illumination colour



Blue, Green, Red


Illumination LED



Yes


Number of fan blades



9


Number of fans



3 fan(s)


Product colour



White


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



13.3 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



10 cm


Width (package,cm)



16 cm


Packaging content



Cables included



4-pin, Fan


Number of screws



12


Remote control included



Yes


Screws included



Yes


Performance



Airflow



115.99 m�/hr


Compatible processor series



Not supported


Fan diameter



12 cm


Maximum air pressure



1.898 mmH2O


Maximum airflow



68.27 cfm


Mean time between failures (MTBF)



100000 Hour


Minimum air pressure



0.17 mmH2O


Noise level (high speed)



23 dB


Noise level (low speed)



12 dB


Rotational speed (max)



1500 RPM


Rotational speed (min)



300 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Ports & interfaces



Number of SATA connectors



1


Power



Rated current



0.21 A


Rated voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Enermax


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 26 x 120 mm


Fan thickness



2.6 cm
