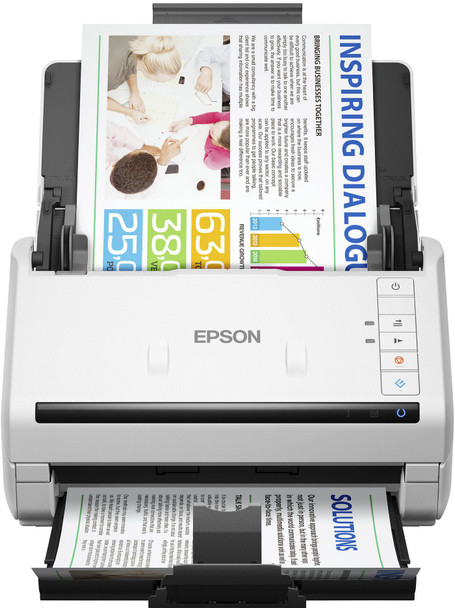

Epson B11B262401 Ds-770 Ii Sheet-Fed Scanner B11B262401

With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-770II is geared towards highly-efficient and simple integration into an organisation�s workflow. With a 100-page ADF and the ability to scan at up to 45ppm/90ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.

Intelligent features improve efficiency, accuracy and data reliability
With an industry-first slow mode1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

Highly versatile
The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.

Flexible connectivity
High-speed USB 3.0 with TWAIN, WIA and ISIS drivers for enhanced compatibility with Document Management Systems.

Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.

Design



Built-in display



Yes


Display



LCD


Product colour



White


Scanner type



Sheet-fed scanner


Input capacity



Auto document feeder (ADF) input capacity



100 sheets


Standard input capacity



100 sheets


Logistics data



Harmonized System (HS) code



84716070


Products per pallet



63 pc(s)


Products per pallet (UK)



84 pc(s)


Operational conditions



Operating relative humidity (H-H)



15 - 80 %


Operating temperature (T-T)



5 - 35 �C


Storage relative humidity (H-H)



15 - 85 %


Storage temperature (T-T)



-25 - 60 �C


Other features



Image formats supported



JPEG, TIFF


Output resolutions



75, 100, 150, 200, 240, 300, 600, 1200 dpi


Package dimensions



Depth (package,cm)



36.5 cm


Gross Weight (Package, kg)



4.81 kg


Height (package,cm)



28.5 cm


Width (package,cm)



25 cm


Packaging content



Bundled software



Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6


Cables included



AC


Drivers included



Yes


Warranty card



Yes


Packaging data



Quantity per pack



1 pc(s)


Paper handling



Auto Document Feeder (ADF) media weight



27 - 413 g/m�


ISO A-series sizes (A0...A9)



A4, A5, A6


ISO B-series sizes (B0...B9)



B5, B6


Legal



Yes


Letter



Yes


Maximum ISO A-series paper size



A4


Maximum scan area (ADF)



215.9 x 6096 mm


Minimum scan area (ADF)



50.8 x 50.8 mm


Scanning media types supported



Plastic Card, Post Card(JPN)


Performance



Daily duty cycle (max)



7000 pages


Light source



ReadyScan LED


Scan drivers



TWAIN, WIA, ISIS


Scan file formats



JPEG, PDF, TIFF


Scan to



E-mail, FTP, Software, Print, Network folder


Ultrasonic sensor



Yes


Ports & interfaces



USB port



Yes


USB version



3.2 Gen 1 (3.1 Gen 1)


Power



Power consumption (off)



0.1 Watt


Power supply type



AC


Product dimensions



Net Weight (Product, kg)



3.7 kg


Product Depth



16.9 cm


Product Height



17.6 cm


Product Width



29.6 cm


Scanning



ADF scan speed (b/w, A4)



45 ppm


ADF scan speed (colour, A4)



45 ppm


Colour scanning



Yes


Duplex ADF scan speed (b/w, A4)



90 ipm


Duplex ADF scan speed (colour, A4)



90 ipm


Duplex scanning



Yes


Input colour depth



30 bit


Input greyscale depth



10 bit


Maximum scan size



215.9 x 6096 mm


Optical scanning resolution



600 x 600 DPI


Output colour depth



24 bit


Output greyscale depth



8 bit


Output monochrome depth



8 bit


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Y, Yes


Server operating systems supported



Windows Server 2008, Windows Server 2008 x64, Windows Server 2008 R2, Windows Server 2012 x64, Windows Server 2012 R2, Windows Server 2003 R2


Windows operating systems supported



Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows RT, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP Professional x64


Vendor information



Brand Name


Epson


Warranty



1 Year(s)
