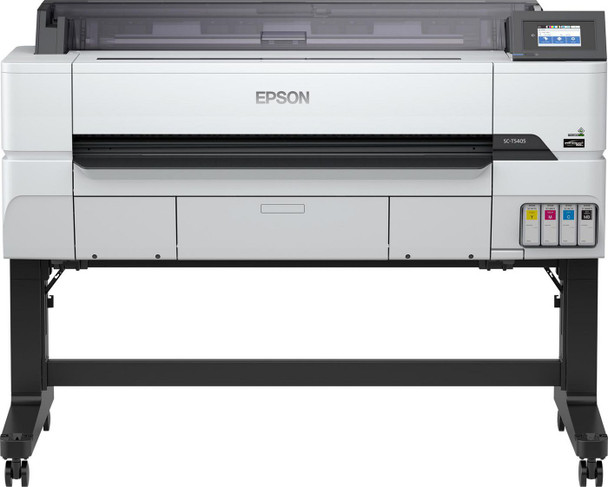

Epson C11CJ56301A0 Surecolor Sc-T5405 Large C11CJ56301A0

Flexible technical printer
The 36-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing in-house.

SureColor SC-T5405 - wireless printer (with stand)
The SC-T5405 large format printer is ideal for printing high-quality CAD designs, architectural or engineering technical drawings, general office documents, high-visibility posters for event organisers or point-of-purchase (POP) signage for retailers. Designed for those who need a professional-level, floor-standing, technical printer which boasts a low total cost of ownership.

Enhanced productivity
High capacity ink cartridges (110ml, 350ml and 700ml) and 4-colour pigment UltraChrome XD2 inks that are smudge and water resistant. Also, the SC-T5405 delivers deep blacks and crisp, dense lines � which is ideal for technical graphics.

A bigger picture
The SC-T5405 offers cost and time saving benefits by enabling a document enlargement workflow. Simply connect your Epson inkjet multifunction printer to your LFP and select the size you desire (up to A0 / 36 inches). Change seamlessly between LFP roll and sheetfeed as this printer supports up to A0 cut sheets as well as rolls. Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.

Copying



Copying



N


Input & output capacity



Total number of input trays



2


Logistics data



Harmonized System (HS) code



84433210


Quantity per pack



1 pc(s)


Other features



Compatible products



WorkForce DS-6500, WorkForce DS-60000


Ink drop



4


Line accuracy



+/- 0,1


Minimum line width



0.02 mm


Touchscreen



Yes


Package dimensions



Depth (package,cm)



155 cm


Gross Weight (Package, kg)



98.8 kg


Height (package,cm)



111.6 cm


Width (package,cm)



85 cm


Packaging data



Drivers included



Yes


Manual



Yes


Paper handling



Borderless printing width



11.81, 12.99, 15.98, 20.28, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll "


Cut sheets



Yes


ISO A-series sizes (A0...A9)



A0, A1, A2, A3, A3+, A4


ISO B-series sizes (B0...B9)



B1, B2, B3, B4, B5


Maximum print size



A0 (841 x 1189 mm)


Maximum roll width



91.4 cm


Media thickness



0.05 - 0.3 mm


Paper tray media types



Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper


Print margin cut-sheet



3 x 3 x 20 x 3 mm


Roll paper



Yes


Performance



Built-in display



Yes


Colour display



Yes


Control type



Touch


Display



LCD


Display diagonal



4.3 "


Internal memory



1024 MB


Maximum internal memory



1000 MB


Product colour



Black, Grey, White


Sound pressure level (printing)



50 dB


Sound pressure level (standby)



32 dB


Ports & interfaces



Direct printing



Yes


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Mobile printing technologies



Apple AirPrint


Security algorithms



SSL/TLS, SNMP, IPSec


Supported network protocols



TLS, SSL, IEE 802, SNMP, IPSec, IPv6


USB connector



USB Type-A / USB Type-B


USB port



Yes


Wi-Fi



Yes


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Power consumption (off)



0.25 Watt


Power consumption (standby)



13 Watt


Power consumption (typical)



38 Watt


Printing



Colour



Yes


Maximum resolution



2400 x 1200 DPI


Number of print cartridges



4


Page description languages



ESC/P-R, HP-GL/2, HP-RTL


Print cartridge volume (metric)



700 ml


Print head nozzles



800 nozzles black, 800 nozzles per colour


Print speed (normal quality, A1)



22 pph


Print technology



Inkjet


Printing colours



Pigment black, Pigment cyan, Pigment yellow, Pigment magenta


Product dimensions



Net Weight (Product, kg)



76 kg


Product Depth



75 cm


Product Height



106 cm


Product Width



138.5 cm


Scanning



Scanning



N


System requirements



Compatible operating systems



Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP


Mac operating systems supported



Mac OS X 10.6 Snow Leopard


Windows operating systems supported



Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP


Vendor information



Brand Name


Epson


Warranty



1 Year(s)
