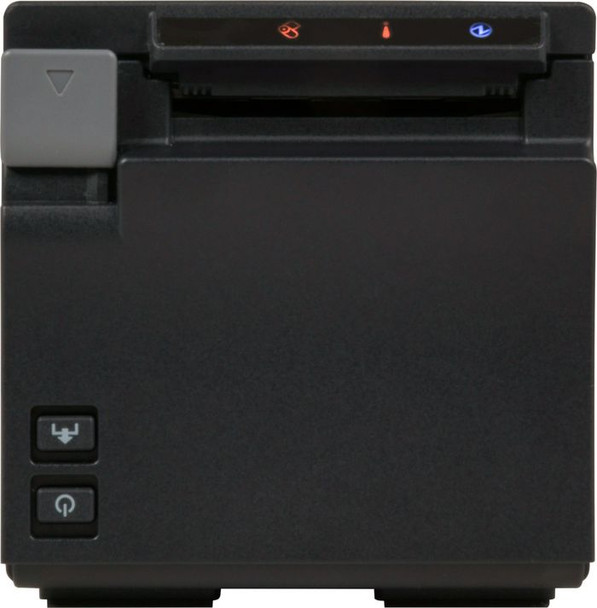

Epson C31CE74112 TM-m10 112. BT. PS. C31CE74112

POS printing reimagined with a compact, sleek, 2" receipt printer

The industry�s smallest POS 2" receipt printer in its class, the TM-m10 saves valuable counter space, while offering the freedom to print receipts from virtually any mobile device and/or desktop PC. Ideal for most environments, its modular casing can be easily switched from a top-load to front-load configuration. This versatile printer ensures simple integration with existing mobile POS environments, intuitive functionality and advanced connectivity. The TM-m10 is the first of its kind designed exclusively for small businesses. Featuring ePOS� print technology, it works with iOS�, Android� and Windows� mobile devices and desktop PCs, and offers fast, easy setup.

Certificates



Safety



EMI FCC Class A, CAN ICES-3(A)/NMB-3(A), UL60950-1/CSA C22.2 No.60950-1


Design



Product colour



Black


Features



Autocutter durability



1 million cuts


Built-in barcodes



CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E


Built-in sensors details



Paper End Sensor, Papier-Sensor


Cutter



Yes


Half-cutter



Yes


LED indicators



Yes


Mean time between failures (MTBF)



360000 Hour


Mounting position



Horizontal/Vertical


Noise level



55 dB


Product colour



Black


Safety



EMI FCC Class A, CAN ICES-3(A)/NMB-3(A), UL60950-1/CSA C22.2 No.60950-1


Sound pressure level (printing)



55 dB


Logistics data



Pallet gross height



95 cm


Pallet gross length



120 cm


Pallet gross width



80 cm


Pallet height (UK)



95 cm


Pallet length (UK)



120 cm


Pallet width (UK)



100 cm


Products per pallet



160 pc(s)


Products per pallet (UK)



240 pc(s)


Products per pallet layer



32 pc(s)


Products per pallet layer (UK)



48 pc(s)


Memory



Buffer size



4 KB


Network



Ethernet LAN



No


Wi-Fi



No


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



5 - 45 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Other features



Buffer size



64 KB


LED indicators



Y, Yes


Mean cycles between failures (MCBF)



60000000


Print head life



100 km - 100.000.000 Impulse


Print head life



100 km


Package dimensions



Depth (package,cm)



2.37 cm


Gross Weight (Package, kg)



1.608 kg


Height (package,cm)



1.79 cm


Width (package,cm)



1.97 cm


Packaging content



AC adapter included



Yes


Packaging data



Quantity per pack



1 pc(s)


Paper handling



Maximum printing width



5.25 cm


Maximum roll diameter



6 cm


Supported paper width



5.75 cm


Performance



Built-in barcodes



CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E


Colour printing



No


Maximum resolution



203 x 203 DPI


Print speed



150 mm/sec


Print technology



Thermal


Type



POS printer


Ports & interfaces



Bluetooth



Yes


Bluetooth version



3.1


Connectivity technology



Wired & Wireless


Near Field Communication (NFC)



Yes


Standard interfaces



Bluetooth, USB 2.0


USB 2.0 ports quantity



1


USB port



Yes


Power



Power consumption



1500 mA


Power consumption (printing)



15.9 Watt


Power consumption (standby)



100 mA


Power consumption (typical)



15.9 Watt


Power plug type



Type C


Power supply type



AC


Print technology



Column capacity



35/42


Printing



Character sets



ANK


Colour



No


Colour printing



No


Maximum resolution



203 x 203 DPI


Print speed



150 mm/sec


Print speed (receipt)



150 mm/sec


Print technology



Direct thermal


Type



POS printer


Product dimensions



Net Weight (Product, kg)



1.274 kg


Product Depth



10.2 cm


Product Height



10.2 cm


Product Width



10.2 cm


Software



Mobile operating systems supported



Android, Windows Mobile, iOS


System requirements



Mobile operating systems supported



Android, Windows Mobile, iOS


Technical details



Font styles



ANK


Harmonized System (HS) code



84433210


Lifetime



15000000 lines


Pallet gross length



120 cm


Pallet gross width



80 cm


Pallet height



95 cm


Pallet height (UK)



95 cm


Pallet length (UK)



120 cm


Pallet width (UK)



100 cm


Quantity per pack



1 pc(s)


Quantity per pallet (UK)



240 pc(s)


Quantity per pallet layer



32 pc(s)


Quantity per pallet layer (UK)



48 pc(s)


Vendor information



Brand Name


Epson


Warranty



2 Year(s)
