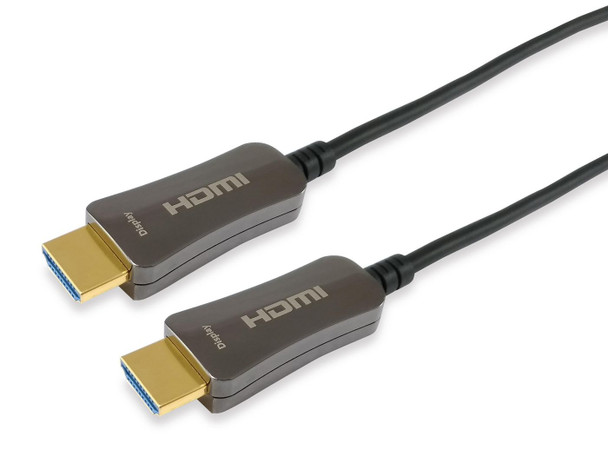

Equip 119430 Hdmi 2.0 Active Optical 119430

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.

Features



3D



Yes


Audio Return Channel (ARC)



Yes


Cable length



30 m


Cable material



Copper


Connector 1



HDMI Type A (Standard)


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 2



HDMI Type A (Standard)


Connector 2 form factor



Straight


Connector 2 gender



Male


Data transfer rate



18 Gbit/s


HDCP



Yes


HDCP version



2.0


HDMI Ethernet channel



Yes


HDMI version



2.0


Plug and Play



Yes


Product colour



Black


Quantity per pack



1 pc(s)


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case gross weight



302 kg


Master (outer) case height



31 cm


Master (outer) case length



58 cm


Master (outer) case width



58 cm


Products per master (outer) case



36 pc(s)


Package dimensions



Depth (package,cm)



22.5 cm


Gross Weight (Package, kg)



1.08 kg


Height (package,cm)



7.4 cm


Width (package,cm)



23.5 cm


Product dimensions



Net Weight (Product, kg)



0.83 kg


Vendor information



Brand Name


Equip


Warranty



1 Year(s)


Weight & dimensions



Cable diameter



4.8 mm
