Equip

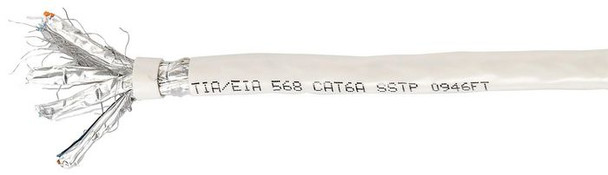

Equip 401493 Cat.6A S/Ftp Installation 401493
- UPC:
- 0000000000000
- MPN:
- 401493
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The equip� Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards defined by the EIA / TIA, ISO and EN standard bodies. The performance is guaranteed via a comprehensive test including attenuation, return loss, NEXT (Next End Crosstalk) and FEXT (Far End Crosstalk) up to 600 MHz and hence the equip� Installation Cable serves well in the most demanding networking environments.
Features
AWG wire size
23
Cable length
305 m
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Cabling technology
10GBase-T
Certification
ISO/IEC 11801, EN50288, TIA/EIA-568-B.2
Conductor type
Solid
Connector 1
N
Connector 1 gender
No
Connector 2
N
Connector 2 gender
No
Data transfer rate
10000 Mbit/s
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Frequency
600 MHz
Jacket material
Low smoke zero halogen (LSZH)
Networking standards
IEEE 802.3, IEEE 802.5
Product colour
Beige
Logistics data
Harmonized System (HS) code
84733080
Other features
Input impedance
100 ?
Package dimensions
Gross Weight (Package, kg)
7.8 kg
Product dimensions
Net Weight (Product, kg)
6 kg
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Equip
Warranty
1 Year(s)
Weight & dimensions
Outer diameter
7.4 mm
View AllClose
Features
AWG wire size
23
Cable length
305 m
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Cabling technology
10GBase-T
Certification
ISO/IEC 11801, EN50288, TIA/EIA-568-B.2
Conductor type
Solid
Connector 1
N
Connector 1 gender
No
Connector 2
N
Connector 2 gender
No
Data transfer rate
10000 Mbit/s
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Frequency
600 MHz
Jacket material
Low smoke zero halogen (LSZH)
Networking standards
IEEE 802.3, IEEE 802.5
Product colour
Beige
Logistics data
Harmonized System (HS) code
84733080
Other features
Input impedance
100 ?
Package dimensions
Gross Weight (Package, kg)
7.8 kg
Product dimensions
Net Weight (Product, kg)
6 kg
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Equip
Warranty
1 Year(s)
Weight & dimensions
Outer diameter
7.4 mm
