Equip 825439 Cat.5E U/Utp 20M Networking 825439

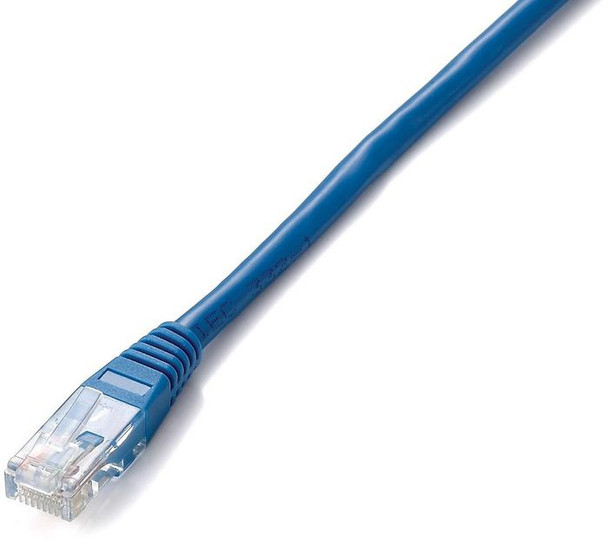

The equip� Cat.5e U/UTP Patch Cable is composed of high-quality materials and thoroughly-examined to meet ANSI/TIA-568-C.2 channel standard, delivering ultrahigh and error-free signal in the most demanding network environments.

- 26AWG at 100Mhz, Stranded Wire
- Gold plated pins and Molded boot with Strain relief
- RoHS compliant
- ISO/IEC 11801, EN50288 and ANSI/TIA 568-C.2
- Packaging: equip Polybag

Features



AWG wire size



26


Cable length



20 m


Cable shielding



U/UTP (UTP)


Cable standard



Cat5e


Certification



ISO/IEC 11801, EN50288, ANSI/TIA 568-C.2


Conductor type



Stranded


Connector 1



RJ-45


Connector 1 gender



Male


Connector 2



RJ-45


Connector 2 gender



Male


Connector contacts plating



Gold


Frequency



100 MHz


Jacket material



Polyvinyl chloride (PVC)


Networking standards



IEEE 802.3, IEEE 802.5


Product colour



Blue


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.55 kg


Product dimensions



Net Weight (Product, kg)



0.42 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Equip


Warranty



1 Year(s)


Weight & dimensions



Outer diameter



4.9 mm
