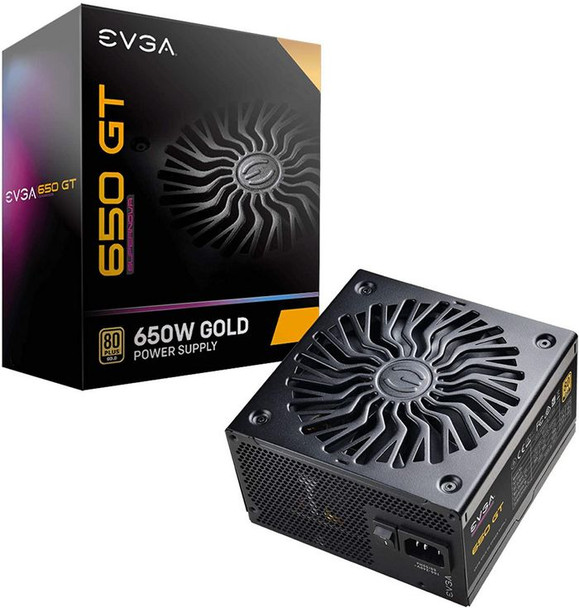

EVGA 220-GT-0650-Y2 Supernova 650 Gt Power Supply 220-GT-0650-Y2

REFINEMENT
IN PERFORMANCE AND DESIGN
Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.

80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.

FLUID DYNAMIC BEARING
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.

SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.

FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.

AUTO ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.

Design



Cooling type



Active


Fan diameter



13.5 cm


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



2.95 kg


Packaging content



Cables included



AC, CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Gold


Bearing technology



FDB


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX Power connector (24-pin)



Yes


Cabling type



Modular


CPU power cable length



70 cm


CPU power connector (4+4 pin)



Yes


EPS power connector (4+4 pin)



Yes


Floppy drive power connector



1


Motherboard power cable length



60 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express power cable length



85 cm


PCI Express power connectors (6+2 pin)



3


Peripheral (Molex) power cable length



550, 650, 750


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



550, 650, 750


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



650 Watt


Combined power (+3.3V)



130 Watt


Combined power (+5V)



130 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Efficiency



92 %


Input current



9 - 4.5 A


Max output current (+12V)



54 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



650 Watt


Product dimensions



Net Weight (Product, kg)



2.27 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


EVGA


Warranty



1 Year(s)
