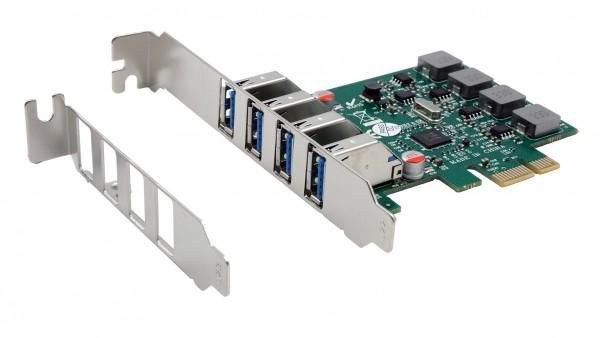

Exsys EX-11044 Interface Cards/Adapter EX-11044

The EX-11044 USB 3.2 Gen 1 PCIe card provides four external super-speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0 or 3.2 Gen 1 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). It is the perfect technology for External Storage Enclosures, Digital Cameras, Webcam, Scanner and more. A low profile bracket is included with the EX-11044 for use with slim enclosures up to a maximum height of 8cm.

Design



Easy to install



Yes


Hot-Plug support



Yes


Hot-swap



Yes


Internal



Yes


Product colour



Green, Silver


Purpose



PC


Features



Chipset



VIA VL805


Data transfer rate (max)



5 Gbit/s


Plug and Play



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-20 - 85 °C


Other features



Data transfer rate



5 Gbit/s


Data transfer rate



480 Mbit/s


Operating temperature (T-T)



32 - 131 °F


Ports quantity



4


Quantity per box



4 pc(s)


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Quantity per pack



4 pc(s)


Ports & interfaces



Connector(s)



4x External USB 3.2 Gen 1 A-female


Expansion card form factor



Full-height / Low-profile


Host interface



PCIe


Host interface gender



Female


Output interface



USB 3.2 Gen 1 (3.1 Gen 1)


PCI Express slots quantity



16


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


Power



Low power mode



Yes


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



6.5 cm


Product Width



8.5 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2


Windows operating systems supported



Windows 10, Windows 11, Windows 7, Windows 8


Vendor information



Brand Name


Exsys


Warranty



1 Year(s)
