Exsys

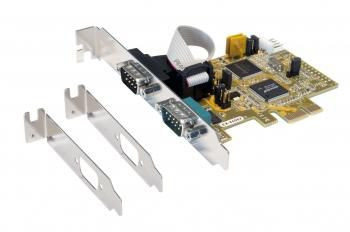

Exsys EX-44062 Interface Cards/Adapter EX-44062
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EX-44062
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The EX-44062 PCI-Express I/O-adapter provides two high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System). With the EX-44062 we include two Low Profile bracket for small computer case.
- Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 258Byte
- �15kV IEC1000-4-2 ESD Schutz f�r RS232 I/O's
- I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
- PCIe Interface fully compliant with 1.0a up to 3.0 specification
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Support Flow Control RTS/CTS and XON/XOFF
- Support +5V or +12V to the pin 9 from the serial male connector
- Chip-Set: SystemBase SB16C1052PCI
Design
Internal
Yes
Product colour
Black, Stainless steel
Purpose
PC
Features
Data bits
5, 6, 7, 8
FIFO (First In, First Out)
256 B
Plug and Play
Yes
Stop bits
1, 1.5, 2
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 55 �C
Storage temperature (T-T)
-40 - 75 �C
Other features
RS-232 interface
Yes
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Ports & interfaces
Expansion card form factor
Low-profile
Host interface
PCIe
Output interface
Serial
Serial interface type
RS-232
Serial ports quantity
2
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
6.6 cm
Product Width
8.8 cm
System requirements
Linux operating systems supported
Yes
Windows operating systems supported
Y, Yes
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Exsys
Warranty
1 Year(s)
View AllClose
- Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 258Byte
- �15kV IEC1000-4-2 ESD Schutz f�r RS232 I/O's
- I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
- PCIe Interface fully compliant with 1.0a up to 3.0 specification
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Support Flow Control RTS/CTS and XON/XOFF
- Support +5V or +12V to the pin 9 from the serial male connector
- Chip-Set: SystemBase SB16C1052PCI
Design
Internal
Yes
Product colour
Black, Stainless steel
Purpose
PC
Features
Data bits
5, 6, 7, 8
FIFO (First In, First Out)
256 B
Plug and Play
Yes
Stop bits
1, 1.5, 2
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 55 �C
Storage temperature (T-T)
-40 - 75 �C
Other features
RS-232 interface
Yes
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Ports & interfaces
Expansion card form factor
Low-profile
Host interface
PCIe
Output interface
Serial
Serial interface type
RS-232
Serial ports quantity
2
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
6.6 cm
Product Width
8.8 cm
System requirements
Linux operating systems supported
Yes
Windows operating systems supported
Y, Yes
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Exsys
Warranty
1 Year(s)
