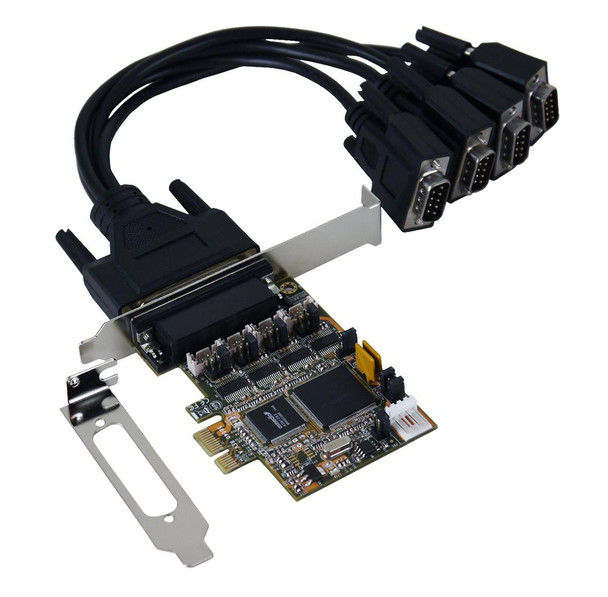

Exsys EX-44384 Interface Cards/Adapter EX-44384

The EX-44384 PCI-Express I/O-adapter provides four high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System). With the EX-44384 we include a Low Profile bracket for small computer case.

Design



Internal



Yes


Purpose



PC


Features



Chipset



SB16C1054PCI


Data bits



5, 6, 7, 8


Flow control support



Yes


Plug and Play



Yes


Stop bits



1, 1.5, 2


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 75 �C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Ports & interfaces



Expansion card standard



PCIe 3.0


Host interface



PCIe


Output interface



VGA


Serial interface type



RS-232


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



6.6 cm


Product Width



8.9 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2012 R2


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


Exsys


Warranty



1 Year(s)
