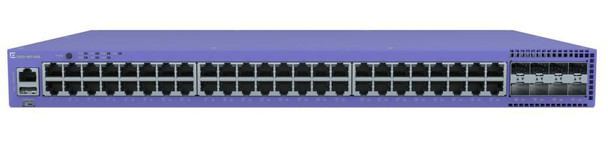

Extreme Networks 5320-48T-8XE Network Switch Gigabit 5320-48T-8XE

Feature-rich edge switches designed for the next generation digital enterprise

Universal Hardware Platform
The 5320 as a universal hardware platform simplifies your deployment experience through powerful cloud management and simplified licensing. It also helps avoid technology lock-in by enabling you to select your desired use case through a simple change of operating software and/or feature set. A 1-year ExtremeCloud IQ Pilot subscription is also included with each 5320 switch.

Ethernet Fabric Services
The 5320 supports a variety of Ethernet Fabric services, including Extreme�s Fabric Connect and IP Fabric. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric Services. Extreme�s Fabric Connect on the 5320 enables the creation of virtualized networks that automate network operations, simplify network provisioning and enhance security, all while reducing the strain on network and IT personnel.

High-Performance Stacking
The 5320 also supports high-speed stacking via its two built-in SFP+ stacking ports. Up to eight systems can be stacked using qualified 10Gb SFP+ direct attach cables and optical transceivers.

SILENT OPERATION
Silent mode operation at temperatures up to 35?C is supported on 5320 16-port models. This makes these models ideal for classrooms, offices, hospitality suites or other noise sensitive environments, especially outside of the wiring closet environment.

Data transmission



Forwarding rate



256 Mpps


MAC address table



32000 entries


Design



Product colour



Blue


Rack mounting



Yes


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Network



Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


Full duplex



Yes


Half duplex



Yes


Operational conditions



Heat dissipation



217 BTU/h


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



5.46 kg


Performance



Noise level



29 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45/Micro-USB


Installed SFP modules quantity



8


USB 2.0 ports quantity



2


Power



Power consumption (max)



64 Watt


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



740 Watt


Product dimensions



Net Weight (Product, kg)



4.2 kg


Product Depth



28 cm


Product Height



4.36 cm


Product Width



44 cm


Sustainability



Sustainability certificates



REACH, RoHS, WEEE


Vendor information



Brand Name


Extreme Networks


Warranty



1 Year(s)
