Extreme Networks

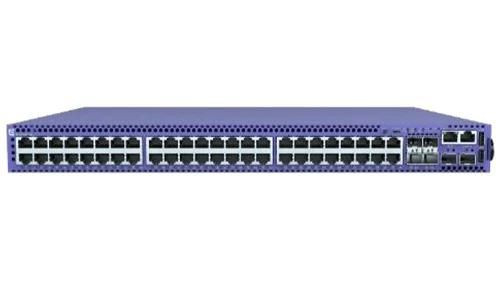

Extreme Networks 5420F-48T-4XE Network Switch Managed L2/L3 5420F-48T-4XE
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- 5420F-48T-4XE
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The 5420 Series is a family of high-performance, feature-rich, stackable edge switches designed for the next-generation digital enterprise. Available in 24 and 48-port models, the 5420 features both gigabit and multi-gigabit (1/2.5G) versions with up to 90W PoE enabling it to be deployed across a range of edge and wiring-closet environments. As a universal hardware platform, the 5420 also offers a user-selectable choice of Extreme�s flagship switch operating systems for a uniquely flexible platform.
The 5420 Series consists of 5420M and 5420F families to address a variety of end-user needs and price points. 5420M models offer field-replaceable power supplies and fans as well as four 1/10/25Gb built-in uplink ports, while 5420F models offer fixed power supply (with support for a second field-replaceable power supply), fixed fans, and four 1/10Gb built-in uplink ports. All models provide 30/60/90W PoE capabilities making them an ideal wired back end for wireless APs or in support of Next Gen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.
The 5420 Series supports IEEE 802.1 Audio Video Bridging (AVB) when running Switch Engine OS . This allows 5420 models to deliver reliable, real-time audio/ video transmission over Ethernet, meeting the quality of service required for today�s high-definition, time-sensitive multimedia streams.
The 5420 can be managed by ExtremeCloud IQ and ExtremeCloud IQ�Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks for efficient inventory and network topology management. ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new 5420 switches online as well as select the OS persona.
Alternatively, 5420 on-box management can be done manually via a web-based GUI or generic command-line interface (CLI).
The 5420 supports a variety of Ethernet Fabric services, including Extreme�s Fabric Connect when running Fabric Engine and Extreme�s IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric services.
Extreme�s Fabric Connect and IP Fabric enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel.
The 5420 Series supports high-speed stacking when running Switch Engine via its two built-in SFP-DD stacking ports. Up to eight switches can be stacked using qualified SFP+/SFP-DD direct attach cables and optical transceivers. Stacking is not supported when running Fabric Engine.
IEEE 802.1AE MACsec is supported on 5420 access and built-in uplink ports, enabling the encryption and decryption of packets between connected switches or devices. As a link-only encryption, 5420 switches can still apply services to the packet, such as policy or QoS, without compromising the security of packets across the link. With 128-bit and 256-bit Advanced Encryption Standard (AES) support, the 5420 provides the most secure link encryption.
All 5420 models support 30W, 60W, and 90W PoE that conforms with IEEE 802.3bt. This enables the 5420 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5420 PoE models support perpetual and fast PoE for even more efficient and reliable powered edge device operation.
The 5420 comes with a dual-persona capability, allowing you to choose your OS. Either the Switch Engine (EXOS)1 or Fabric Engine (VOSS)2 OS can be selected at switch start-up or changed at a later stage. When selected, the switch assumes the features and capabilities of that OS.
5420 OS selection can also be automated with ExtremeCloud IQ so that the desired OS can be automatically loaded at switch start-up, facilitating remote OS enablement.
1 Switch Engine is the new name for ExtremeXOS (EXOS) on all universal switch platforms, starting with Version 31.6.
2 Fabric Engine is the new name for the VSP Operating System Software (VOSS) on all universal switch platforms, starting with Version 8.6.
Data transmission
Forwarding rate
190.5 Mpps
MAC address table
32000 entries
Number of IP interfaces
1533
Number of queues
8
Switching capacity
256 Gbit/s
Design
Form factor
1U
LED indicators
Y, Yes
Product colour
Blue
Rack mounting
Yes
Stackable
Yes
Management features
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Switch type
Managed
Web-based management
Yes
Multicast features
IPv4 multicast entries
6000
Network
10G support
Yes
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates
10, 100, 1000
Full duplex
Yes
Half duplex
Yes
IP routing
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Number of VLANs
4094
VLAN support
Yes
Operational conditions
Heat dissipation
255 BTU/h
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
10 - 95 %
Operating temperature (T-T)
0 - 50 �C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Packaging data
Rack mount kit
Yes
Performance
Noise level
35.3 dB
Physical stacking (units)
2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/Micro-USB
Gigabit Ethernet (copper) ports quantity
48
Number of management ports
1 pc(s)
SFP module slots quantity
2
SFP+ module slots quantity
4
USB 2.0 ports quantity
2
Power
AC input frequency
47/63 Hz
AC input voltage
100 - 240 V
Number of power supply units
1
Power consumption (max)
75 Watt
Power source
AC
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
28.7 cm
Product Height
4.32 cm
Product Width
44.2 cm
Protocols
Routing protocols
OSPF
Security
Access Control List (ACL)
Yes
Security algorithms
128-bit AES, 256-bit AES
Sustainability
Sustainability certificates
BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), KCC, REACH, RoHS, WEEE
Sustainability compliance
Yes
Vendor information
Brand Name
Extreme Networks
Warranty
1 Year(s)
