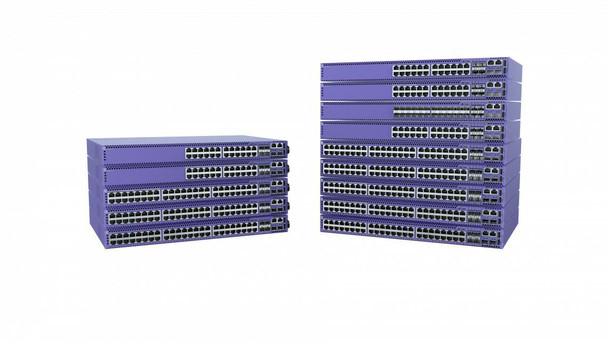

Extreme Networks 5420M-24W-4YE Network Switch Gigabit 5420M-24W-4YE

5420 Series
Universal Edge Switch Platform
The 5420 Series is a family of high-performance, feature-rich, stackable edge switches designed for the next-generation digital enterprise. Available in 24 and 48-port models, the 5420 features both gigabit and multi-gigabit (1/2.5G) versions with up to 90W PoE enabling it to be deployed across a range of edge and wiring-closet environments. As a universal hardware platform, the 5420 also offers a user-selectable choice of Extreme�s flagship switch operating systems for a uniquely flexible platform.
The 5420 Series consists of 5420M and 5420F families to address a variety of end-user needs and price points. 5420M models offer fieldreplaceable power supplies and fans as well as four 1/10/25Gb builtin uplink ports, while 5420F models offer fixed power supply (with support for a second field-replaceable power supply), fixed fans, and four 1/10Gb built-in uplink ports. All models provide 30/60/90W PoE capabilities making them an ideal wired back end for wireless APs or in support of NextGen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.

Data transmission



Forwarding rate



244 Mpps


Switching capacity



328 Gbit/s


Design



LED indicators



Y, Yes


Rack mounting



Yes


Stackable



Yes


Management features



Cloud-managed



Yes


Quality of Service (QoS) support



Yes


Network



10G support



Yes


Full duplex



Yes


Half duplex



Yes


Networking standards



IEEE 802.3bt


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Noise level



33 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Fiber optic connector



SFP28


SFP module slots quantity



2


SFP28 ports quantity



4


USB 2.0 ports quantity



2


Power



Power consumption (max)



1601 Watt


Power consumption (typical)



43 Watt


Power source



PoE


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



90 Watt


Total Power over Ethernet (PoE) budget



1440 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



0.55 cm


Product Height



0.16 cm


Product Width



0.48 cm


Security



Security algorithms



128-bit AES, 256-bit AES


Vendor information



Brand Name


Extreme Networks


Warranty



1 Year(s)
