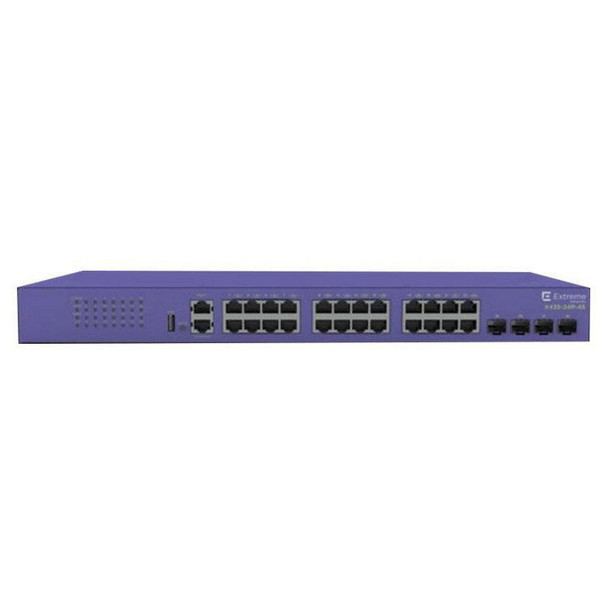

Extreme Networks X435-24P-4S Extremeswitching X435 Managed X435-24P-4S

Explore Switches for Distributed Enterprises, Branches and Small Sites
Entry-level switches for distributed enterprises, branches and small sites

Fanless Operation
X435 Series switches support fanless operation making them ideal for classrooms, retail sites or other noise sensitive environments, especially outside the wiring closet.

Flexible PoE
Standard-based 30W PoE ports on the X435 can power Ethernet-connected edge devices, such as IP phones or wireless APs, without the need for additional electric cabling. Fast and perpetual PoE features also help speed powered edge device start-up while minimizing disruption during an X435 switch restart.

Fabric Attach
Fabric Attach on the X435 can be used to automate the connection to Extreme�s campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows the X435 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.

Role-Based Policy
The X435 supports role-based policies centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise. Each defined role can then be granted individualized access to specific network services or applications.

Audio Video Bridging (AVB)
AVB on the X435 delivers reliable, real-time transmission over Ethernet for today's high-definition, time-sensitive multimedia applications.

Data transmission



Forwarding rate



50.6 Mpps


Jumbo frames support



Yes


MAC address table



16000 entries


Number of queues



8


Switching capacity



68 Gbit/s


Design



Certification



EU RoHS, EU WEEE, China RoHS, Taiwan RoHS


Product colour



Violet


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch type



Managed


Network



10G support



No


Networking standards



IEEE 802.3at


Number of VLANs



4096


Operational conditions



Heat dissipation



43.9 BTU/h


Package dimensions



Gross Weight (Package, kg)



9.97 kg


Performance



Built-in processor



Yes


Flash memory



128 MB


Internal memory



512 MB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



4


Power



Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



7.67 kg


Product Depth



25.4 cm


Product Height



4.35 cm


Product Width



44.1 cm


Security



Access Control List (ACL) ingress



1000


Vendor information



Brand Name


Extreme Networks


Warranty



1 Year(s)
