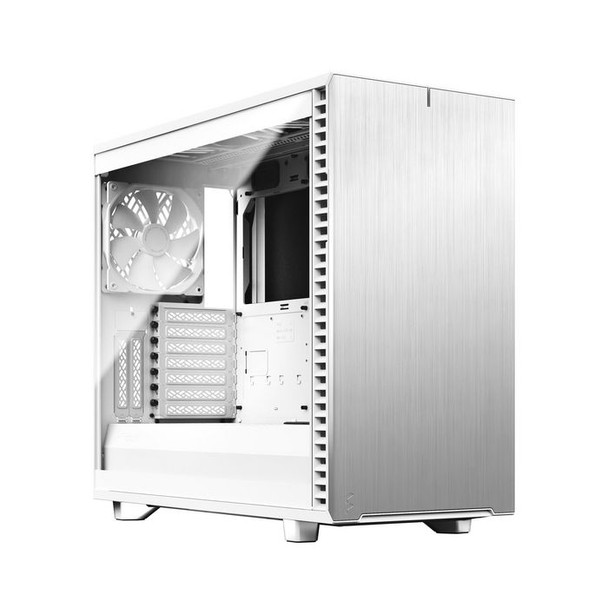

Fractal Design FD-C-DEF7A-06 Define 7 Midi Tower White FD-C-DEF7A-06

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

Introducing the Define 7 series

Re-defining versatility

Open and interchangeable

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance.

Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

- Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The single 5.25� ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering.

Open layout for massive headroom

You�ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

- Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

- 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
- 2 dedicated SSD brackets included with 4 positions total
- Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
- Sturdy new HDD cage design with vibration damped trays

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels

Cable management

Integrated cable guides with Velcro ties simplifies cable management behind the board.

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans.

Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps.

Versatile new Multibracket

The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount.

Cooling



Bottom radiator sizes supported



240, 280


Front fans diameters supported



120, 140


Front radiator fan sizes supported



280, 360


Front radiator installed



No


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



3


Rear fans diameters supported



120, 140


Rear radiator fan size installed



120


Rear radiator installed



Yes


Top fans diameters supported



120, 140


Top radiator fan sizes supported



360, 420


Top radiator installed



No


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Midi Tower


LED indicators



Y, Yes


Material



Aluminium, Steel


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



49.1 cm


Maximum PSU length



25 cm


Number of 3.5" bays



6


Number of 5.25" bays



1


Number of expansion slots



9


On/off button



Yes


Product colour



White


Reset button



Yes


Side window



Yes


Supported motherboard form factors



ATX, EATX, micro ATX, Micro-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



17.49 kg


Packaging content



Manual



Yes


Ports & interfaces



USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Number of power supply units



1


Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



13.45 kg


Product Depth



24 cm


Product Height



45.1 cm


Product Width



53.3 cm


Storage



Supported HDD sizes



2.5, 3.5, 5.25


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
