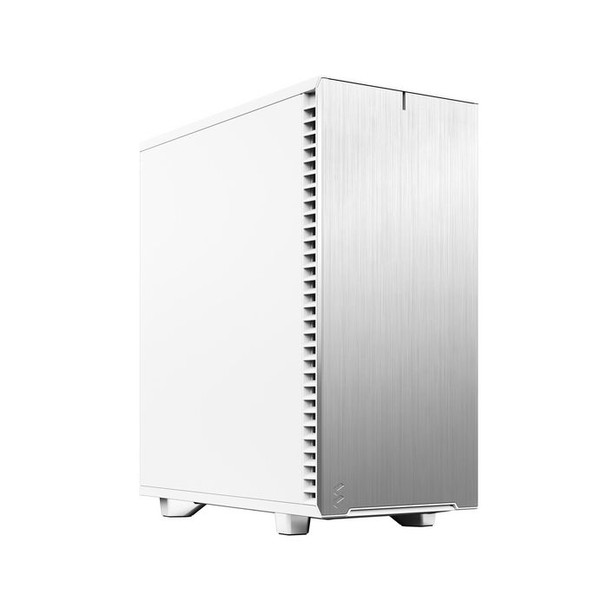

Fractal Design FD-C-DEF7C-05 Define 7 Tower White FD-C-DEF7C-05

A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top � or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

Concealed storage
You can fit two 2.5�/3.5� drives beneath the shroud and two SSDs behind the backplate

More in store
A pair of SSDs are easily mounted straight on the PSU shroud

Front, top and base
Easy-to-clean high airflow nylon filters

Open access
Remove the entire top to build and route with zero hindrance

Cooling



Bottom fans diameters supported



120


Front fans diameters supported



120, 140


Front fans installed



1x 140 mm


Front radiator sizes supported



280, 360


Number of bottom fans supported (max)



1


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



240


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Tower


Material



Steel


Maximum CPU cooler height



16.9 cm


Maximum graphics card length



36 cm


Maximum PSU length



20 cm


Number of 2.5" bays



4


Number of 3.5" bays



2


Number of expansion slots



7


On/off button



Yes


Product colour



White


Reset button



Yes


Side window



No


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



53.6 cm


Gross Weight (Package, kg)



11.19 kg


Height (package,cm)



52.1 cm


Width (package,cm)



31 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



8.61 kg


Product Depth



42.7 cm


Product Height



47.4 cm


Product Width



21 cm


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
