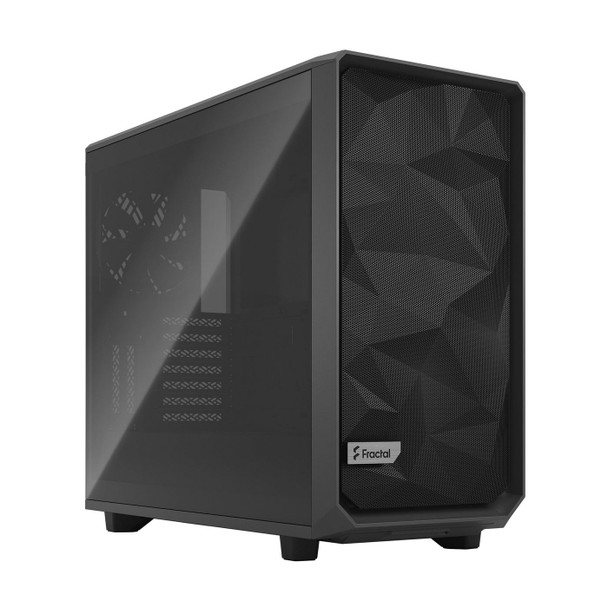

Fractal Design FD-C-MES2A-04 Meshify 2 Tower Grey FD-C-MES2A-04

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

Detachable front filter
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX

Open and interchangeable
Remove the entire top to build and route with zero hindrance.

Type-C Interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Cooling



Bottom fans diameters supported



120, 140


Front fans diameters supported



120, 140


Front fans installed



2x 140 mm


Front radiator sizes supported



280, 360


Number of bottom fans supported (max)



2


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



3


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



360, 420


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Tower


Material



Steel


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



31.5 cm


Maximum PSU length



25 cm


Number of 2.5" bays



2


Number of 3.5" bays



6


Number of expansion slots



9


Number of storage drives supported



23


On/off button



Yes


Product colour



Grey


Reset button



Yes


Side window



Yes


Suitable for



Gaming


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



63.4 cm


Gross Weight (Package, kg)



13.65 kg


Height (package,cm)



32.4 cm


Width (package,cm)



54.2 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



10.5 kg


Product Depth



54.2 cm


Product Height



47.4 cm


Product Width



24 cm


Storage



HDD/SSD combo cage



Yes


Number of HDDs supported



18


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
